43720 | KEL-DPZ 24/15 Grey | Cable Entry Plate
KEL-DPZ 24 Cable entry plates, To route and seal up to 15 cables, Dimensions: 147 x 58mm
| Complete Electronics Part No. | 43720 |
|---|---|
| Manufacturers Part No. | 43720 |
| Number of Cables: | max 15 |
| Core Colour: | Grey |
| ATEX Approval: | Not ATEX Approved |
| Cable Length: | 0.6 Metre |
| Enclosure Shape: | Rectangular |
Description
KEL-DPZ 24 Cable entry plates
To route and seal up to 15 cables
- Number of Cables: max 15 x 7.2-12mm

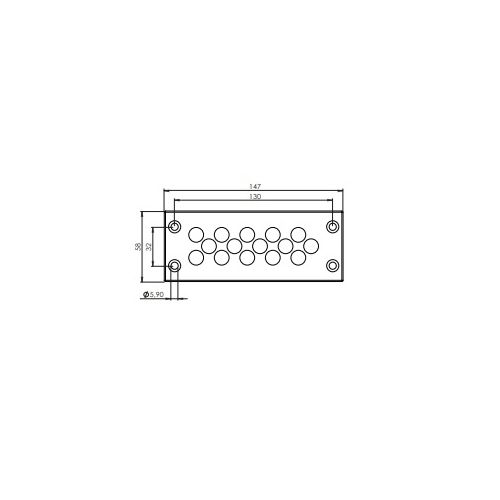

- Dimensions: 147 x 58mm
- Plate Depth: 14mm
- Cut Out Dimensions: 36 x 112mm
- Halogen and Silicone free
- Colour: Grey (Similar to RAL 7035)
- Frame: Polyamide (PA)
- Sealing plate: Elastomer
- For cables without connectors
- Temperature: -40°C to +90°C (Static)
- IP65/IP66 (certifi ed acc. to EN 60529)
- Pack Unit 10
- icotek part number: 43720
