43735 | KEL-DPZ 24/121 Grey | Cable Entry Plate

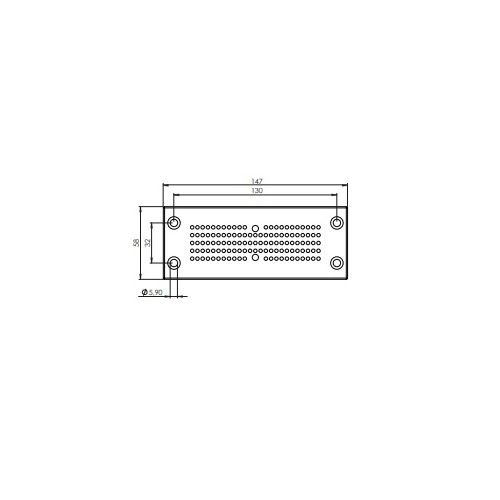

KEL-DPZ 24 Cable entry plates, To route and seal up to 121 cables, Dimensions: 147 x 58mm, max cable diameter 5mm, cut-out size 112 x 36mm
| Complete Electronics Part No. | 43735 |
|---|---|
| Manufacturers Part No. | 43735 |
| Number of Cables: | max 121 |
| Core Colour: | Grey |
| ATEX Approval: | Not ATEX Approved |
| Enclosure Shape: | Rectangular |
Description
Max no. of cables: 121
Max Cable Diameter 5mm
Clamping Range: 119 x 1.5 - 2.6mm + 2 x 2.5 - 5mm
Number of screw holes: 4
Screw hole diameter: 5.9mm
Packing Unit: 10
Icotek Part Number: 43735
EAN: 4251269310560
KEL-DPZ 24/121 gy Cable entry plates
To route and seal up to 121 cables
Certified protection up to IP66 (acc. to EN 60529)
Self tapping mounting screws are included
Material Elastomer
Base Frame: Polyamide (PA) / Stainless steel (V2A)
Flame Class: UL94-V0, self-extinguishing
Temperature Rating: - 40°C to +100°C
Silicon free, Halogen free
ST-B Plugs can be used for sealing pierced membranes if cables have been removed
Self tapping mounting screws are included
Material Elastomer
Base Frame: Polyamide (PA) / Stainless steel (V2A)
Flame Class: UL94-V0, self-extinguishing
Temperature Rating: - 40°C to +100°C
Silicon free, Halogen free
ST-B Plugs can be used for sealing pierced membranes if cables have been removed
Colour: Grey
Length: 147mm
Width: 58mm
Height: 14mm
Mounting height:14mm
Screw type mounting
Cut out size: 112 x 36mm
Length: 147mm
Width: 58mm
Height: 14mm
Mounting height:14mm
Screw type mounting
Cut out size: 112 x 36mm
Max no. of cables: 121
Max Cable Diameter 5mm
Clamping Range: 119 x 1.5 - 2.6mm + 2 x 2.5 - 5mm
Number of screw holes: 4
Screw hole diameter: 5.9mm
Packing Unit: 10
Icotek Part Number: 43735
EAN: 4251269310560
