43780 | KEL-DPZ-E 112/7 Grey | Cable Entry Plate
KEL DPZ-E Cable entry plates, To route and seal up to 7 cables, Dimensions: 147 x 29mm
| Complete Electronics Part No. | 43780 |
|---|---|
| Manufacturers Part No. | 43780 |
| Number of Cables: | max 7 |
| Core Colour: | Grey |
| ATEX Approval: | Not ATEX Approved |
| Cable Length: | 10 Metres |
| Enclosure Shape: | Rectangular |
Description
KEL DPZ-E Cable entry plates
To route and seal up to 21 cables
- Number of Cables: max 7x7.5-12mm

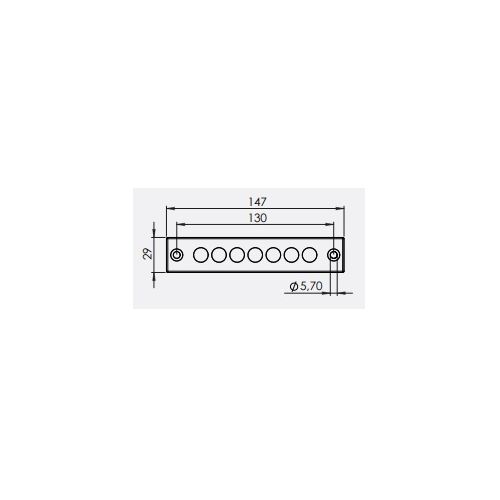

- Dimensions: 147 x 29mm
- Plate Depth: 14mm
- Cut-out Dimensions: 18 x 112mm
- Frame: Polyamide (PA)
- Sealing plate: Elastomer
- UL94-V0, self-extinguishing
- IP66 (certifi ed acc. to EN 60529)
- Temperature: -40°C to +90°C (Static)
- Halogen Free and Silicone Free
- Colour: Grey (similar to RAL 7035)
- Pack Unit 10
- icotek part number: 43780
