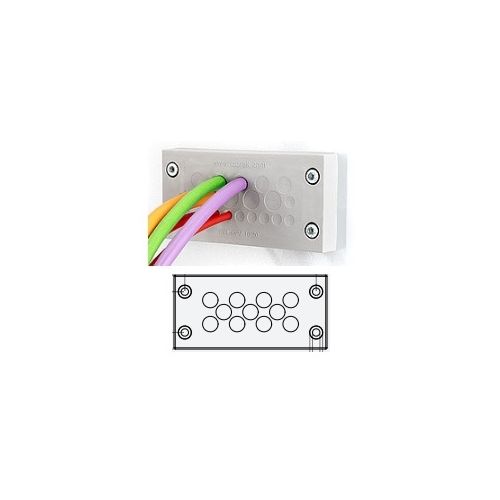

43815 | KEL-DPZ 16/11 Grey | Cable Entry Plate
KEL-DPZ 16/11 Cable entry plates, To route and seal up to 11 cables, Dimensions: 120 x 58mm
| Complete Electronics Part No. | 43815 |
|---|---|
| Manufacturers Part No. | 43815 |
| Number of Cables: | max 11 |
| Core Colour: | Grey |
| ATEX Approval: | Not ATEX Approved |
| Enclosure Shape: | Rectangular |
Description
KEL-DPZ 16 Cable entry plates
To route and seal up to 11 cables
For cables without connectors
Number of Cables: max 11x 7.5 - 12mm
Dimensions: 120 x 58mm
Plate Depth: 14mm
Cut Out Dimensions 36 x 86mm
Temperature: -40°C to +90°C (Static)
Halogen and Silicone free
Colour: Grey (Similar to RAL 7035)
Frame: Polyamide (PA)
Sealing plate: Elastomer
IP65/IP66 (certifi ed acc. to EN 60529)
Pack Unit 10
icotek part number: 43815
