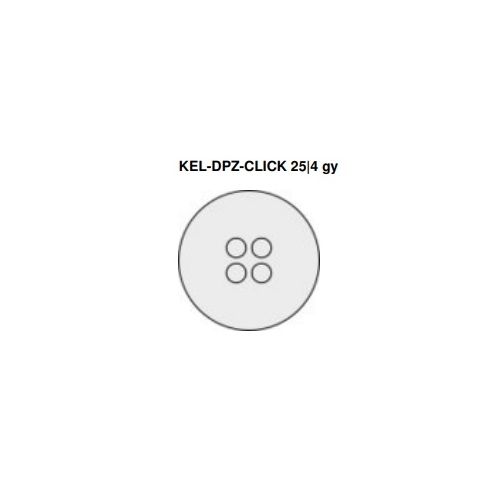

44051 | KEL-DPZ-CLICK 25/4 gy | Cable Entry Plate
KEL-DPZ-CLICK 25/4 gy, Snap-in and locknut fixation, Max 4 Cables, Automatic sealing and strain relief for the cable
| Complete Electronics Part No. | 44051 |
|---|---|
| Manufacturers Part No. | 44051 |
| Number of Cables: | max 4 |
| Core Colour: | Grey |
| ATEX Approval: | Not ATEX Approved |
| Cut Out Dimensions: | 25.3mm |
| Thread Diameter: | M25 |
| Enclosure Shape: | Circular |
| External Diameter | 39mm |
Description
KEL-DPZ-CLICK 25/4 gy
For routing cables without connectors
- Number of Cables: max 4
- Cut out Diameter: 25.3mm
- Cut out Size, Metric: M25
- Thread: M25 x 1.5
- Thread: Length: 20mm
- Mounting Height: 8mm
- Flame class UL94-V0, self-extinguishing
- Operating temperature -40 °C to 100 °C
- Silicone Free,
- Halogen Free
- Colour: Grey (Similar to RAL 7035)
- Height 28mm
- Clamping Range: 4 x 3.2 - 5.2mm
- External Diameter: 39mm
- Make a small hole in the thin membrane and push the cables through
- Automatic sealing and strain relief for the cable
- Material: Elastomer, Base frame: Polyamide
- Part No. 44051
- EAN 4251269323072
- PU 10
Snapped into the cut-out:
For wall thickness 1 – 2.5 mm
Protection IP65
Fixed with a locknut:
For max. wall thickness 11 mm
Protection IP66 / IP68
