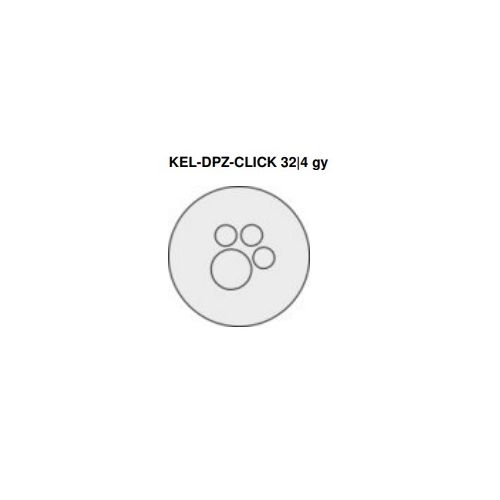

44052 | KEL-DPZ-CLICK 32/4 gy | Cable Entry Plate
KEL-DPZ-CLICK 32/4 gy, Snap-in and locknut fixation, Max 4 Cables, Automatic sealing and strain relief for the cable
| Complete Electronics Part No. | 44052 |
|---|---|
| Manufacturers Part No. | 44052 |
| Number of Cables: | max 4 |
| Core Colour: | Grey |
| ATEX Approval: | Not ATEX Approved |
| Cut Out Dimensions: | 32.3mm |
| Thread Diameter: | M32 |
| Enclosure Shape: | Circular |
| External Diameter | 44mm |
Description
KEL-DPZ-CLICK 32/4 gy
For routing cables without connectors
- Number of Cables: max 4
- Cut out Diameter: 32.3mm
- Cut out Size, Metric: M32
- Thread: M32 x 1.5
- Thread: Length: 20mm
- Mounting Height: 8mm
- Flame class UL94-V0, self-extinguishing
- Operating temperature -40 °C to 100 °C
- Silicone Free,
- Halogen Free
- Colour: Grey (Similar to RAL 7035)
- Height 28mm
- Clamping Range: 3 x 3.2 - 6.5mm 1 x 7.2-12.5
- External Diameter: 44mm
- Make a small hole in the thin membrane and push the cables through
- Automatic sealing and strain relief for the cable
- Material: Elastomer, Base frame: Polyamide
- Part No. 44052
- EAN 4251269323089
- PU 10
Snapped into the cut-out:
For wall thickness 1 – 2.5 mm
Protection IP65
Fixed with a locknut:
For max. wall thickness 11 mm
Protection IP66 / IP68
