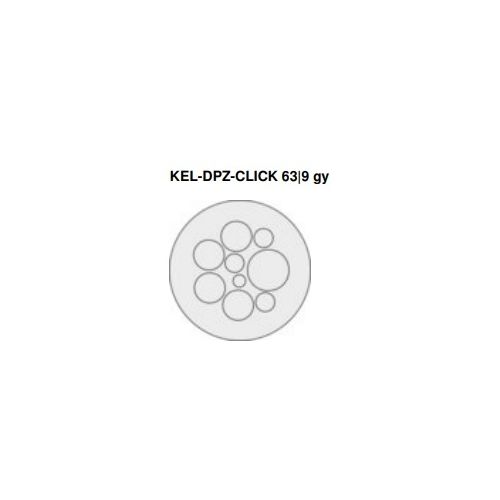

44061 | KEL-DPZ-CLICK 63/9 gy | Cable Entry Plate
KEL-DPZ-CLICK 63/9 gy, Snap-in and locknut fixation, Max 9 Cables, Automatic sealing and strain relief for the cable
| Complete Electronics Part No. | 44061 |
|---|---|
| Manufacturers Part No. | 44061 |
| Number of Cables: | max 9 |
| Core Colour: | Grey |
| ATEX Approval: | Not ATEX Approved |
| Cut Out Dimensions: | 63.4mm |
| Thread Diameter: | M63 |
| Enclosure Shape: | Circular |
| External Diameter | 75mm |
Description
KEL-DPZ-CLICK 63/9 gy
For routing cables without connectors
- Number of Cables: max 9
- Cut out Diameter: 63.4mm
- Cut out Size, Metric: M63
- Thread: M63 x 1.5
- Thread: Length: 20mm
- Mounting Height: 8mm
- Flame class UL94-V0, self-extinguishing
- Operating temperature -40 °C to 100 °C
- Silicone Free,
- Halogen Free
- Colour: Grey (Similar to RAL 7035)
- Height 28mm
- Clamping Range: 1 x 3.2 - 6.5mm, 3 x 5 - 10.2mm, 4 x 9 - 16.2mm, 1 x 16 - 22.2mm
- External Diameter: 75mm
- Make a small hole in the thin membrane and push the cables through
- Automatic sealing and strain relief for the cable
- Material: Elastomer, Base frame: Polyamide
- Part No. 44061
- EAN 4251269323171
- PU 10
Snapped into the cut-out:
For wall thickness 1 – 2.5 mm
Protection IP65
Fixed with a locknut:
For max. wall thickness 11 mm
Protection IP66 / IP68
