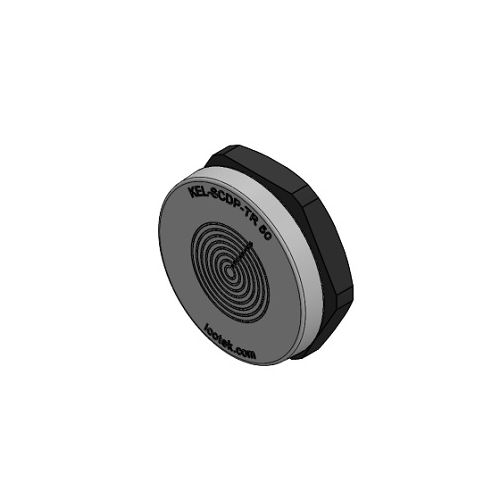

44073 | KEL-SCDP-TR 50 | Cable Entry Grommet
KEL-SCDP-TR Round Cable Entry Plate, For routing cables without connectors, Cut out Diameter: M50 (50.4mm)
| Complete Electronics Part No. | 44073 |
|---|---|
| Manufacturers Part No. | 44073 |
| Number of Cables: | max 1 |
| Core Colour: | Grey |
| ATEX Approval: | Not ATEX Approved |
| Enclosure Shape: | Circular |
| External Diameter | 62mm |
Description
KEL-SCDP-TR 50 - Round Cable Entry Plate
For routing cables without connectors
- Number of Cables: 1
- Cut out Diameter: M50 (50.4mm)
- Height: 22mm
- External Diameter: 62mm
- Mounting Height: 8mm
- Thread: M50 x 1.5
- Thread Length: 14mm
- Clamping Range: 1 x 8 - 38mm
- IP Rating: IP54, IP55, IP64, IP65
- Material: Elastomer frame - Polyamide
- Operating Temperature: 40 C° to 100 C°
- Silicone free
- Halogen free
- Fastens with locknut (Included)
- Pack Unit 10
- Quick assembly without tools
- icotek part number: 44073
