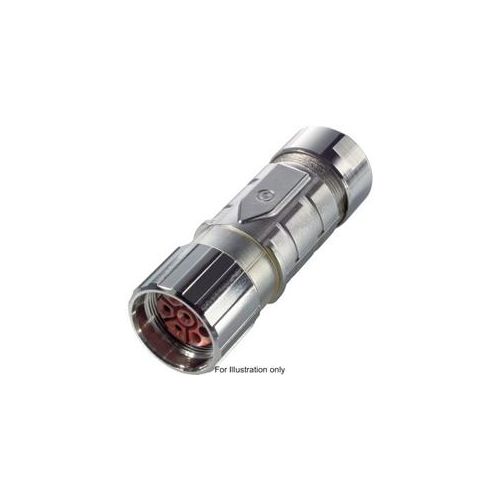

44420090 | Lapp Circular Connector | Epic® Power LS1 D6
Lapp Epic®Power LS1 D6 Cable Connector, Number of Contacts: 5+PE (6 Contacts)
| Complete Electronics Part No. | 44420090 |
|---|---|
| Manufacturers Part No. | 44420090 |
| Type: | Cable Socket |
| Lapp Circular Range: | Power LS1 D6 |
| Number of poles | 5+PE |
| Male/Female: | Female |
| Termination: | Crimp |
| Mounting: | Cable |
| Clamping Range | 14-17mm |
Description
Part Number 44420090
Lapp Epic®Power LS1 D6 Cable Connector
- Number of Contacts: 5+PE (6 Contacts)
- Contact Size: 2mm
- Rated Voltage: 630V
- Rated Current: 25A
- Gender: Female
- Supplied WITHOUT Contacts
- Housing: Nickel Plated Zinc die casting
- Ingress Protection: IP68
- Temperature Range: -25°C to +125deg;C
- EMC Optimised
- Clamping Range: 14 - 17mm
***Contacts to be purchased separately see LS1 Accessories Section***
