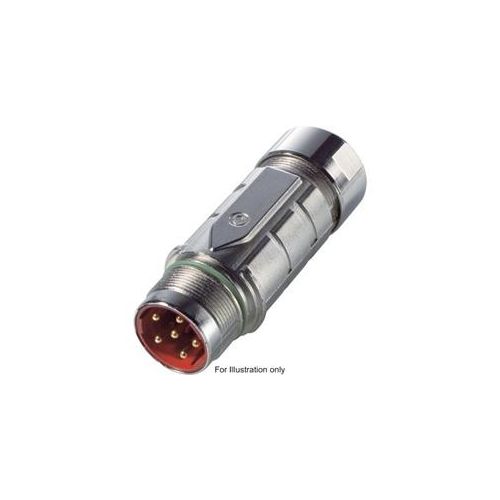

44420092 | Lapp Circular Connector | Epic® Power LS1 F6

Lapp Epic®Power LS1 F6 Cable Coupler, Number of Contacts: 3+PE+4 (8 Contacts)
More Information
Complete Electronics Part No. 44420092
Manufacturers Part No. 44420092
Type: Coupler Connector
Lapp Circular Range: Power LS1 F6
Number of poles 3+PE+4 (8 contacts)
Male/Female: Male
Termination: Crimp
Mounting: Cable
Clamping Range 14-17mm
Description

Part Number 44420092

Lapp Epic®Power LS1 F6 Cable Coupler

  • Number of Contacts: 3+PE+4 (8 Contacts)
  • Contact Size: 2mm
  • Rated Voltage: 630V-2mm Contacts, 250V-2mm/1mm Contacts
  • Rated Current: 25A/26A
  • Gender: Male
  • Supplied WITHOUT Contacts
  • Housing: Nickel Plated Zinc die casting
  • Ingress Protection: IP68
  • Temperature Range: -25°C to +125deg;C
  • EMC Optimised
  • Clamping Range: 14 - 17mm
  •                    ***Contacts to be purchased separately see LS1 Accessories Section***

>
