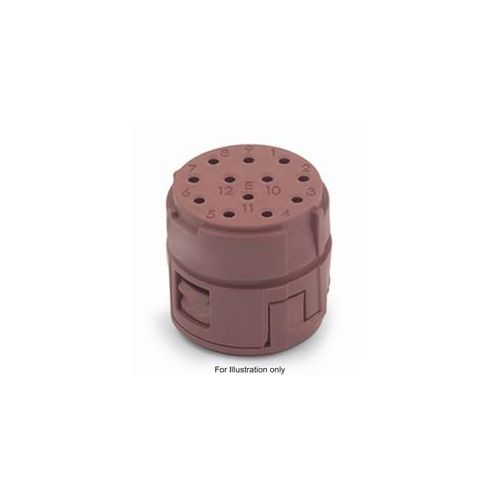

44420120 | Lapp M23 Insert | Epic® Signal M23 Insert 12 Pole D sub

Epic® Signal M23 Insert - 12 Pole D sub, Rated Voltage: 100v, Rated Current: 4A, For D sub ribbon contacts
More Information
Complete Electronics Part No 44420120
Manufacturers Part No. 44420120
Type Insert (D-Sub)
Lapp Circular Range Signal M23
Number of poles 12
Coded Option (Circular) E Part (Rotation to Right)
Description

Part Number 44420120

Epic® Signal M23 Insert - 12 Pole D sub

  • Rated Voltage: 100v
  • Rated Current: 4A
  • Contact Resistance: < 4 mOhm
  • For D sub ribbon contacts
  • For automated production with crimping machine
  • Temperature Range: -25°C to +125°C
  • Contacts: Partly gold plated brass
  • E part (rotation to the right - clockwise)
  • Unpopulated for male D sub crimps
  • Crimp Termination: 0.08 - 0.56mm²
  •



                       ***Contacts to be purchased separately***

        ***Suitable Contacts: Epic® M-D 1.0 D sub Stamped Contacts***

>
