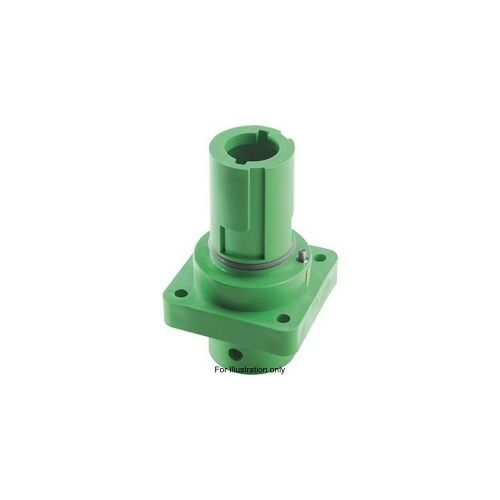

44420223 | Lapp Circular Connector | Epic® Powerlock A 1 C
Lapp Epic® Powerlock A 1 C (Drain), For Unscreened Single Core Power Cables, Crimp Termination - 35 to 240mm²
| Complete Electronics Part No. | 44420223 |
|---|---|
| Manufacturers Part No. | 44420223 |
| Type: | Connector Body |
| Lapp Circular Range: | Powerlock A1 C |
| Male/Female: | Drain |
| Termination: | Crimp |
| Connector Colour: | Brown |
| Mounting: | Panel Mount with Flange |
Description
Part Number 44420223
Lapp Epic® Powerlock A 1 C (Drain)
- For Unscreened Single Core Power Cables
- Each colour has a different coding to prevent incorrect connection
- Crimp Termination - 35 to 240mm²
- Silver plated Copper
- Rated Voltage: 1000V
- Rated Current: 660A max
- Pin Configuration: L1 - Brown
- Powerlock A 1 L1/BN
- Ingress Protection: IP67 -mated
- Temperature Range: -25°C to +125deg;C
- Panel Mount Base
- Fixing Holes: Ø5.5mm x 4
***Contacts to be purchased separately see Powerlock Accessories Section***
