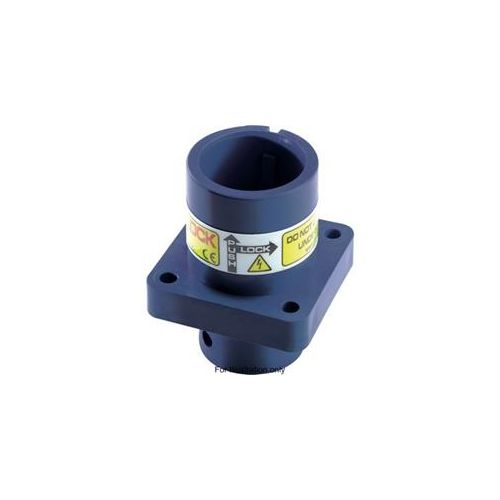

44420277 | Lapp Circular Connector | Epic® Powerlock A 6 S
Lapp Epic® Powerlock A 6 S (Source), For Unscreened Single Core Power Cables, Screw Termination - 50 to 120mm²
| Complete Electronics Part No. | 44420277 |
|---|---|
| Manufacturers Part No. | 44420277 |
| Type: | Connector Body |
| Lapp Circular Range: | PowerLock A6 S |
| Male/Female: | Source |
| Termination: | Screw |
| Connector Colour: | Green |
| Mounting: | Panel Mount with Flange |
Description
Part Number 44420277
Lapp Epic® Powerlock A 6 S (Source)
- For Unscreened Single Core Power Cables
- Each colour has a different coding to prevent incorrect connection
- Screw Termination - 50 to 120mm²
- Silver plated brass
- Rated Voltage: 1000V
- Rated Current: 400A max
- Pin Configuration: PE - Green
- Powerlock A 6 PE/GN
- Ingress Protection: IP67 -mated
- Temperature Range: -20°C to +125deg;C
- Panel Mount Base
- Fixing Holes: Ø5.5mm x 4
***Contacts to be purchased separately see Powerlock Accessories Section***
