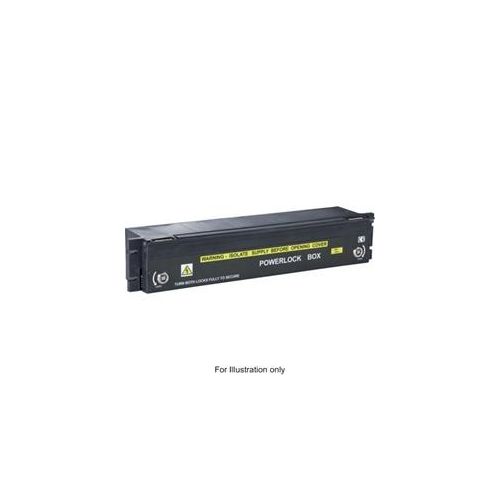

44420284 | Lapp Circular Connector | Powerlock Box C
Powerlock Box C A6, Panel Mounted Base , Each colour has a different coding to prevent incorrect connection
| Complete Electronics Part No. | 44420284 |
|---|---|
| Manufacturers Part No. | 44420284 |
| Type: | Powerlock Box A6 |
| Lapp Circular Range: | Powerlock |
| Number of poles | 4+PE |
| Male/Female: | Source |
| Termination: | Crimp |
Description
Part Number 44420284
Powerlock Box C A6
- Panel Mounted Base
- Source With M12 Threaded post
- Each colour has a different coding to prevent incorrect connection
- Crimp Termination - 35 to 240mm²
- Silver plated copper
- Rated Voltage: 1000V
- Rated Current: 660A max
- Fixing Holes: Ø6.5mm x 4
- Pin Configuration 4+PE
- Integrated microswitch for connection to alarm circuit or circuit breaker
