44423060 | Lapp Circular Connector | Epic® Power M17 F6
Epic® Power M17 F6 Male, Number of Contacts: 3+PE (2.0mm), Termination: Crimp, Rated Voltage: 630V - 60V 0.6mm, Rated Current: 14A / 3.6A
| Complete Electronics Part No. | 44423060 |
|---|---|
| Manufacturers Part No. | 44423060 |
| Type: | Connector Body |
| Lapp Circular Range: | Power M17 F6 |
| Number of poles | 3+PE |
| Male/Female: | Male |
| Termination: | Crimp |
| Mounting: | Cable |
Description
Part Number 44423060

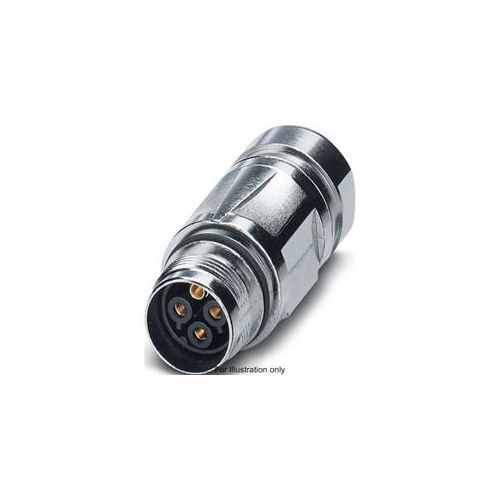

Epic® Power M17 F6 Male
- For Servo Motors and Power Supply
- Cable Mount
- Clamping Range: 3.5mm to 11mm
- Number of Contacts: 3+PE (2.0mm)
- Termination: Crimp
- Rated Voltage: 630V - 60V 0.6mm
- Rated Current: 14A / 3.6A
- Protection Rating: IP67
- Contacts: Gold Plated Brass
- Temperature Range: -40°C to +125°C
***Crimps to be purchased separately - see Accessories Section***
