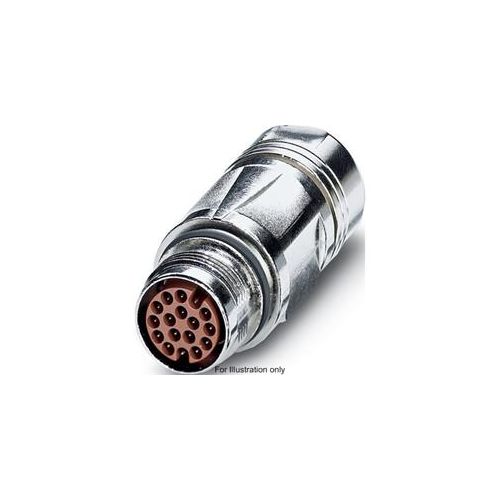

44423107 | Lapp Circular Connector | Epic® Signal M17 F6
Epic® Signal M17 F6 Female, Clamping Range: 3.5mm to 11mm, Number of Contacts: 17, Termination: Crimp, Rated Voltage: 60V
| Complete Electronics Part No. | 44423107 |
|---|---|
| Manufacturers Part No. | 44423107 |
| Type: | Coupler Connector |
| Lapp Circular Range: | Power M17 F6 |
| Number of poles | 17 |
| Male/Female: | Female |
| Termination: | Crimp |
| Mounting: | Cable |
Description
Part Number 44423107
Epic® Signal M17 F6 Female
- For Servo Motors and Power Supply
- Cable Coupler
- Cable Mount
- Clamping Range: 3.5mm to 11mm
- Number of Contacts: 17
- Termination: Crimp
- Rated Voltage: 60V
- Rated Current: 3.6A
- Protection Rating: IP67
- Contacts: Gold Plated Brass
- Temperature Range: -40°C to +125°C
***Crimps to be purchased separately - see Accessories Section***
