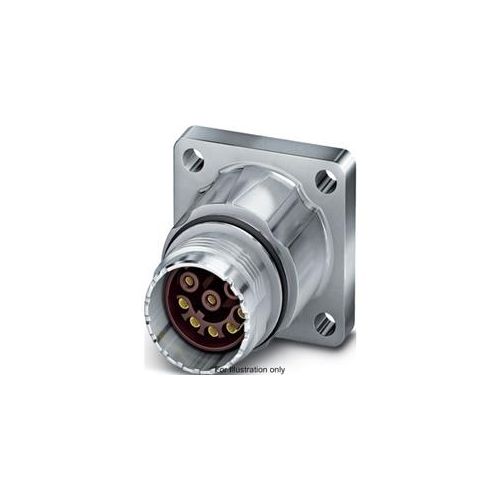

44423110 | Lapp Circular Connector | Epic® Signal M17 A1
Epic® Signal M17 A1 Female, Number of Contacts: 8, Termination: Crimp, Rated Voltage: 60V, Rated Current: 3.6A
| Complete Electronics Part No. | 44423110 |
|---|---|
| Manufacturers Part No. | 44423110 |
| Type: | Connector Body |
| Lapp Circular Range: | Signal M17 A1 |
| Number of poles | 8 |
| Male/Female: | Female |
| Termination: | Crimp |
| Mounting: | Panel Mount |
Description
Part Number 44423110
Epic® Signal M17 A1 Female
- For Servo Motors and Power Supply
- Panel Mounting
- Fastening Type: Ø 2.7mm x4
- Number of Contacts: 8
- Termination: Crimp
- Rated Voltage: 60V
- Rated Current: 3.6A
- For Shielded Data Cables
- Protection Rating: IP67
- Contacts: Gold Plated Brass
- Temperature Range: -40°C to +125°C
***Crimps to be purchased separately - see Accessories Section***
