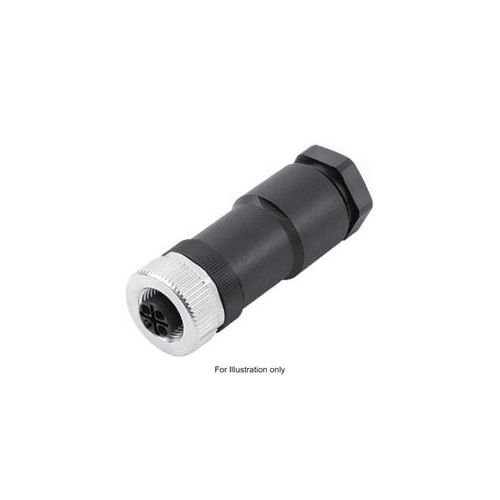

44423141 | Lapp Circular Connector | Epic® Power M12
Epic® Power M12, Cable Coupler with Socket Contacts, Number of Contacts: 3+PE, Screw Contacts, Rated Voltage: 630V, Rated Current: 12A
| Complete Electronics Part No. | 44423141 |
|---|---|
| Manufacturers Part No. | 44423141 |
| Type: | Coupler Connector |
| Lapp Circular Range: | Power M12 |
| Number of poles | 3+PE |
| Male/Female: | Female |
| Coded Option (Circular) | S |
| Termination: | Screw |
| Mounting: | Cable |
Description
Part Number 44423141
Epic® Power M12
- Cable Coupler with Socket Contacts
- Clamping Range in mm: 8 -10
- Number of Contacts: 3+PE
- S Coded
- Screw Contacts
- Rated Voltage: 630V
- Rated Current: 12A
- Protection Rating: IP67
- Temperature Range: -40°C to +85°C Termination Termination Termination Termination
