44423203 | EPIC H-BE 10 BP | Lapp Epic® H-BE Insert

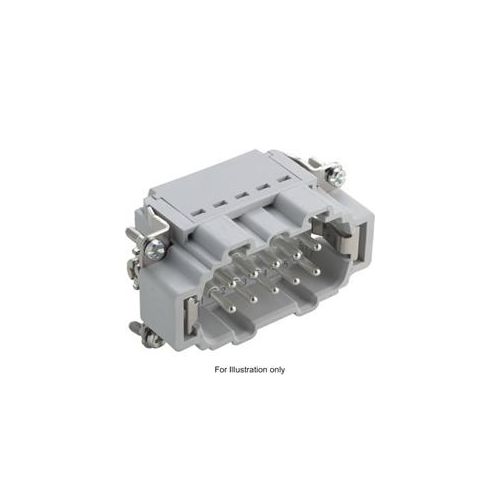

Lapp Epic® H-BE Insert EPIC H-BE 10 BP
| Complete Electronics Part No. | 44423203 |
|---|---|
| Manufacturers Part No. | EPIC H-BE 10 BP |
| Lapp Rectangular Type | Insert |
| Lapp Rectangular Range | H-BE Insert |
| Number of poles | 10+PE |
| Male/Female: | Female |
| Termination: | Push In |
| Rated Voltage: | 500V |
| Rated Current: | 16A |
Description
44423203 / EPIC H-BE 10 BP
Lapp Epic® H-BE Insert EPIC H-BE 10 BP
- Proven Standard Insert For Easy Assembly
- Number of Contacts: 10+PE
- Rated Voltage: IEC 500V
- Rated Current: IEC 16A
- Termination: Push In
- Contact Type: Female
- Connection Cross Section : 0.14 - 2.5mm²
- Contacts: Copper Alloy, Hard Silver Plated
- Temperature Range: -40°C to +100°C
- Suitable Housing: Ultra H-B 10, H-B 10 and QUICK & EASY Mount
