44424044 | EPIC K 4/2 BS | Lapp Epic® Power K4 Insert

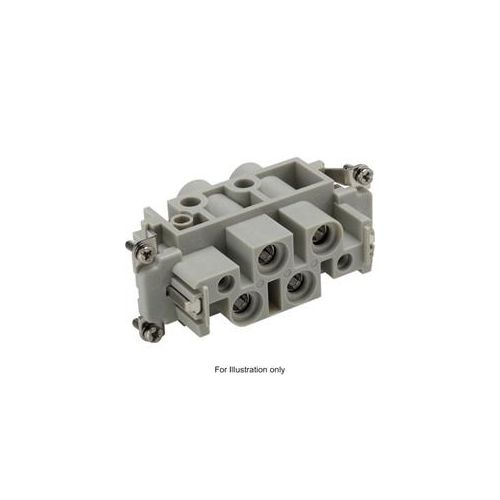

Lapp Epic® Power K4 Insert EPIC K 4/2 BS
| Complete Electronics Part No. | 44424044 |
|---|---|
| Manufacturers Part No. | EPIC K 4/2 BS |
| Lapp Rectangular Type | Insert |
| Lapp Rectangular Range | Power K4 Insert |
| Number of poles | 4+2+PE |
| Male/Female: | Female |
| Termination: | Screw |
| Rated Voltage: | 830V Power & 400V Control |
| Rated Current: | 80A Power & 16A Control |
Description
44424044 / EPIC K 4/2 BS
Lapp Epic® Power K4 Insert EPIC K 4/2 BS
- Combination Insert - Power and Control
- Number of Contacts: 4+2+PE
- Rated Voltage: IEC 830V Power & 400V Control
- Rated Current: 80A Power & 16A Control
- Termination: Screw
- Contact Type: Female
- Connection Cross Section : 1.5 - 16mm²
- Temperature Range: -40°C to +125°C
