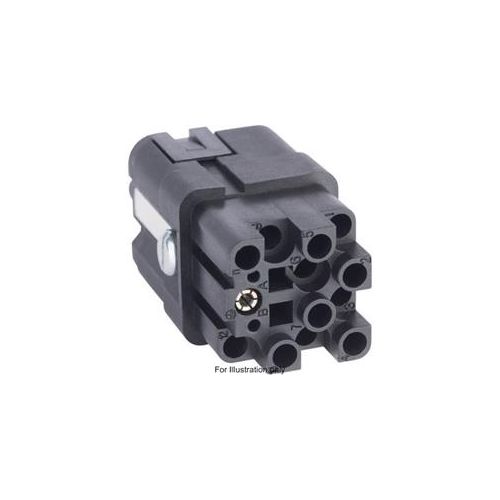

44424049 | H-Q 12 SC | Lapp Epic® H-Q Insert
Lapp Epic® H-Q Insert H-Q 12 SC
| Complete Electronics Part No. | 44424049 |
|---|---|
| Manufacturers Part No. | H-Q 12 SC |
| Lapp Rectangular Type | Insert |
| Lapp Rectangular Range | H-Q Insert |
| Number of poles | 12+PE |
| Male/Female: | Male |
| Termination: | Crimp |
| Rated Voltage: | 400V |
| Rated Current: | 10 Amps |
Description
44424049 / H-Q 12 SC
Lapp Epic® H-Q Insert H-Q 12 SC
- Number of Contacts: 12+PE
- Contacts: Copper Alloy, Hard Silver / Gold Plated
- Rated Voltage: IEC 400V
- Rated Current: IEC 10A
- Termination: Crimp
- PE Contact: Screw Termination
- Contact Type: Male
- Connection Cross Section : 0.14 - 2.5mm²
- Temperature Range: -40°C to +120°C
- Suitable Housing: H-A 3
- Suitable Contact: Epic® H-D 1.6 Machined
***Contacts to be purchased separately ***
