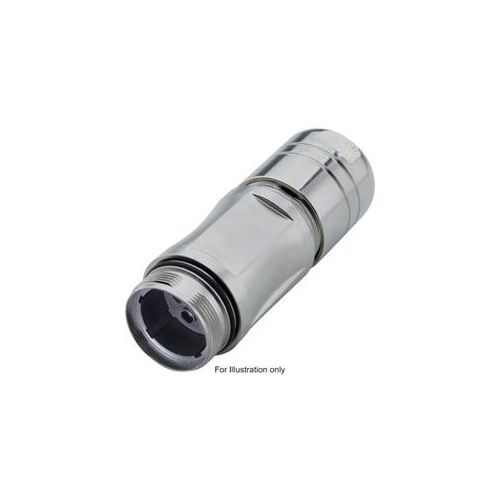

44429300 | Lapp Circular Connector | Epic® Power LS1.5 F6
Lapp Epic® Power LS1.5 F6 Cable Coupler, Cable Mounting, Number of Contacts 3+PE+2 (6 Contacts)
| Complete Electronics Part No. | 44429300 |
|---|---|
| Manufacturers Part No. | 44429300 |
| Type: | Connector Body |
| Lapp Circular Range: | Power LS1.5 F6 |
| Number of poles | 3+PE+2 (6 contacts) |
| Male/Female: | Male |
| Termination: | Crimp |
| Mounting: | Cable |
| Clamping Range | 9.0-14mm |
Description
Part Number 44429300
Lapp Epic® Power LS1.5 F6 Cable Coupler
- Cable Mounting
- Number of Contacts 3+PE+2 (6 Contacts)
- For Male Contacts - Contacts to be ordered separately
- Contact Sizes: 3.6mm / 2mm
- Crimp Range: 9-14mm
- Rated Voltage: 630V (3.6mm contacts), 250V (2mm Contacts),
- Rated Current: 2mm Contacts 30A at 25°C, 3.6mm Contacts 70A at 25°C
- Housing: Nickel Plated Zinc
- Inges Protection: IP67
- Temperature Range: -20°C to +125deg;C
***Contacts to be purchased separately see LS1.5 Accessories Section***
