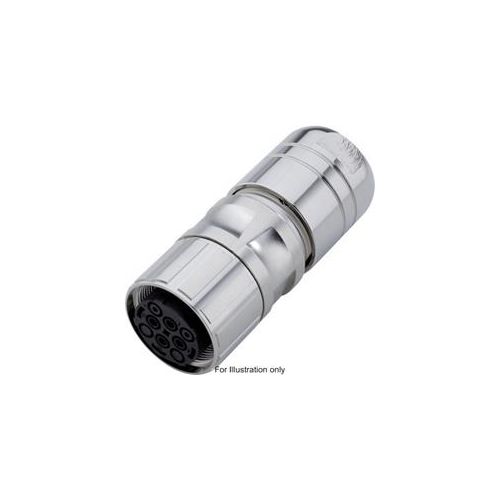

44429311 | Lapp Circular Connector | Epic® Power LS1.5 D6

Lapp Epic® Power LS1.5 D6 Cable Coupler, Cable Mounting, Number of Contacts 3+PE+2 (6 Contacts)
More Information
Complete Electronics Part No 44429311
Manufacturers Part No. 44429311
Type Connector Body
Lapp Circular Range Power LS1.5 D6
Number of poles 3+PE+2 (6 contacts)
Male/Female Female
Termination Crimp
Mounting Cable
Clamping Range 14.0-20.5mm
Description

Part Number 44429311

Lapp Epic® Power LS1.5 D6 Cable Coupler

  • Cable Mounting
  • Number of Contacts 3+PE+2 (6 Contacts)
  • For Female Contacts - Contacts to be ordered separately
  • Contact Sizes: 3.6mm / 2mm
  • Crimp Range: 14-20.5mm
  • Rated Voltage: 630V (3.6mm contacts), 250V (2mm Contacts),
  • Rated Current: 2mm Contacts 30A at 25°C, 3.6mm Contacts 70A at 25°C
  • Housing: Nickel Plated Zinc
  • Inges Protection: IP67
  • Temperature Range: -20°C to +125deg;C
  •                    ***Contacts to be purchased separately see LS1.5 Accessories Section***

>
