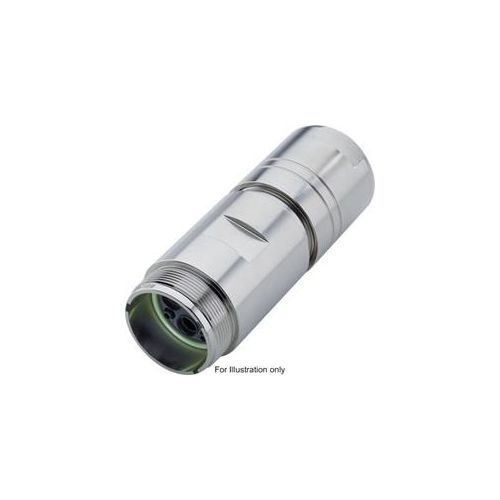

44429349 | Lapp Circular Connector | Epic® Power LS3 F6
Lapp Epic® Power LS3 F6 Cable Coupler, Cable Mounting, Number of Contacts 3+PE+2 (6 Contacts)
| Complete Electronics Part No. | 44429349 |
|---|---|
| Manufacturers Part No. | 44429349 |
| Type: | Connector Body |
| Lapp Circular Range: | Power LS3 F6 |
| Number of poles | 3+PE+2 (6 contacts) |
| Male/Female: | Male |
| Termination: | Crimp |
| Mounting: | Cable |
| Clamping Range | 25.0-36mm |
Description
Part Number 44429352
Lapp Epic® Power LS3 A1 Cicular Connector
- Cablel Mounting
- Number of Contacts 3+PE+2 (6 Contacts)
- For Male Contacts - Contacts to be ordered separately
- Contact Sizes: 10mm / 6mm
- Rated Voltage: 630V (10mm contacts), 250V (1.6mm Contacts)
- Rated Current: 10mm Contacts 150A , 1.6mm Contacts 12A
- Housing: Anodised Aluminium
- Fixing Size: Ø 4.2mm x4
- Inges Protection: IP67
- Temperature Range: -20°C to +120deg;C
***Contacts to be purchased separately ***
