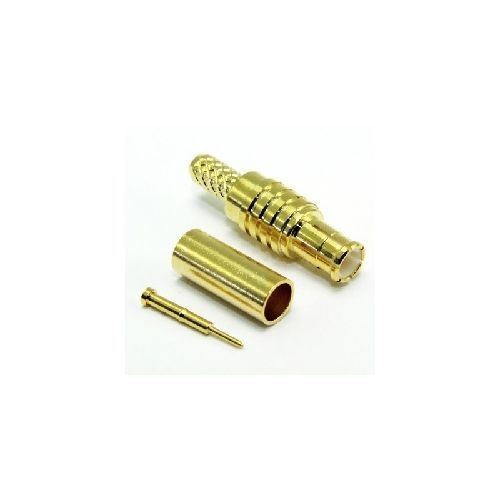

45-005-D3-AA | 45005D3AA | MCX Straight Crimp Plug
MCX 50 ohm full crimp straight plug with annealed crimp zones, Suitable for use with RG178 and similar cables in group AA.
| Complete Electronics Part No. | 45005D3AA |
|---|---|
| Manufacturers Part No. | 45-005-D3-AA |
| Male/Female: | Male |
| Type | Straight |
| Impedance | 50 Ohm |
| Working Frequency | Up To 6GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: 6GHz
- Dielectric Withstand Voltage 500 Veff
- Insulation Resistance 1000 M-Ohm
- Return Loss: -29.3dB@6GHz
Mechanical Specification
- Design Standard: IEC 61169-36 and CECC 22220
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 250
- Contact Retention: 10N min
- Cable Retention 60N min
- Weight: 1.59g
- Mating Force: 10N Max
- Uncoupling Force: 20N Max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP40
Materials
- Centre Contact: Brass
- Outer Contact: Phosphor Bronze
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Pack Size 1
