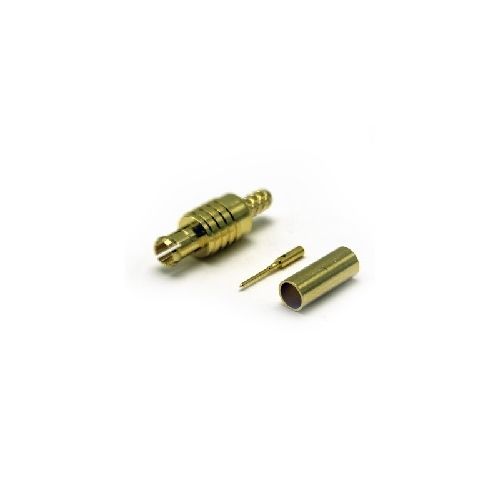

45-005-D6-AB | 45005D6AB | MCX Straight Crimp Plug

MCX 75 ohm full crimp straight plug with annealed crimp zones, Suitable for use with RG179 and similar cables in group AB
More Information
Complete Electronics Part No. 45005D6AB
Manufacturers Part No. 45-005-D6-AB
Male/Female: Male
Type Straight
Impedance 75 Ohm
Working Frequency Up To 6GHz
Description

Electrical Specification

  • Impedance: 75 Ohm
  • Frequency Range: Up to 6GHz
  • Dielectric Withstand Voltage 500 Veff
  • Insulation Resistance 1000 M-Ohm

Mechanical Specification

  • Design Standard: IEC 61169-36 and CECC 22220
  • RoHS3 Compliant
  • Centre Contact Termination: Crimp
  • Outer Contact Termination: Crimp
  • Mating Cycles: 500
  • Contact Retention: 10N min
  • Cable Retention 60N min
  • Weight: 1.51g
  • Mating Force: 10N Max
  • Uncoupling Force: 20N Max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP40

Materials

  • Centre Contact: Brass
  • Outer Contact:  Phosphor Bronze
  • Insulator: PTFE
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Gold
  • Pack Size 1
