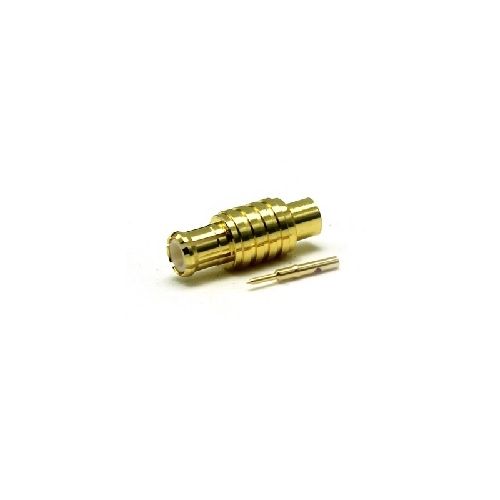

45-014-D3-HA | 45014D3HA | MCX Straight Solder Plug
MCX 75 ohm full Solder straight plug with annealed contact and crimp sleeve, Suitable for use with RG405 semi-rigid and similar cables in group HA.
| Complete Electronics Part No. | 45014D3HA |
|---|---|
| Manufacturers Part No. | 45-014-D3-HA |
| Male/Female: | Male |
| Type | Straight |
| Impedance | 50 Ohm |
| Working Frequency | Up To 6GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 6GHz
- Dielectric Withstand Voltage 500 Veff
- Insulation Resistance 1000 M-Ohm
- Return Loss: -29.3dB@6GHz
Mechanical Specification
- Design Standard: IEC 61169-36 and CECC 22220
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Solder
- Mating Cycles: 500
- Contact Retention: 10N min
- Cable Retention 200N min
- Weight: 0.8g
- Mating Force: 10N Max
- Uncoupling Force: 20N Max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP40
Materials
- Centre Contact: Brass
- Outer Contact: Phosphor Bronze
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Pack Size 1
