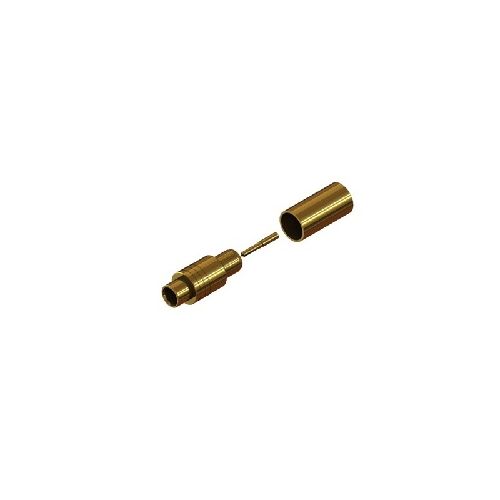

45-054-D6-FA | 45054D6FA | MCX Straight Crimp Jack
MCX 75 ohm full crimp straight jack with annealed crimp zones, Suitable for use with cables in group FA.
| Complete Electronics Part No. | 45054D6FA |
|---|---|
| Manufacturers Part No. | 45-054-D6-FA |
| Male/Female: | Female |
| Type | Straight |
| Impedance | 75 Ohm |
| Working Frequency | Up To 6GHz |
Description
Electrical Specification
- Impedance: 75 Ohm
- Frequency Range: Up to 6GHz
- Dielectric Withstand Voltage 500 Veff
- Insulation Resistance 1000 M-Ohm
Mechanical Specification
- Design Standard: IEC 61169-36 and CECC 22220
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 250
- Contact Retention: 10N min
- Cable Retention 60N min
- Weight: 2.53g
- Mating Force: 10N Max
- Uncoupling Force: 20N Max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP40
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Phosphor Bronze
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Pack Size 1
