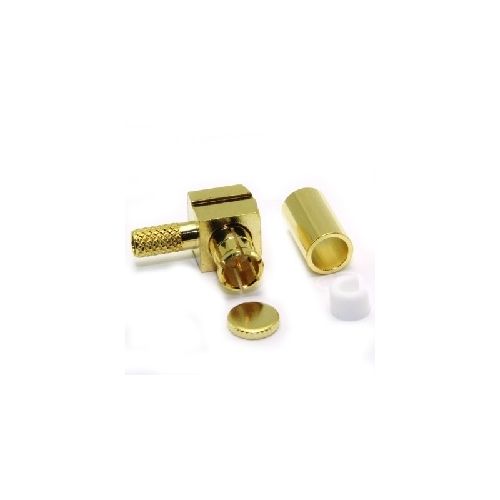

45-105-D3-AA | 45105D3AA | MCX R/A Solder / Crimp Plug

MCX 50 ohm solder / crimp plug, right angle with soldered centre contact and crimped braid, Suitable for use with flexible cables in group AA.
More Information
Complete Electronics Part No. 45105D3AA
Manufacturers Part No. 45-105-D3-AA
Male/Female: Male
Type Right Angled
Impedance 50 Ohm
Working Frequency Up To 6GHz
Description

Electrical Specification

  • Impedance: 50 Ohm
  • Frequency Range: Up to 6GHz
  • Dielectric Withstand Voltage 500 Veff
  • Insulation Resistance 1000 M-Ohm

Mechanical Specification

  • Design Standard: IEC 61169-36 and CECC 22220
  • RoHS3 Compliant
  • Centre Contact Termination: Solder
  • Outer Contact Termination: Crimp
  • Mating Cycles: 250
  • Contact Retention: 10N min
  • Cable Retention 60N min
  • Weight: 1.59g
  • Mating Force: 10N Max
  • Uncoupling Force: 20N Max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP40

Materials

  • Centre Contact: Brass
  • Outer Contact:  Phosphor Bronze
  • Insulator: PTFE
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Gold
  • Pack Size 1
