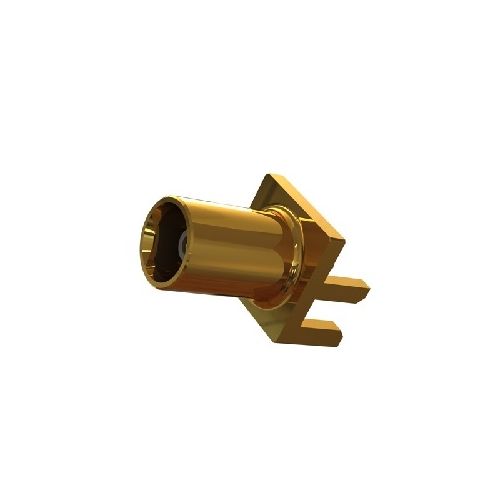

45-410-D3-1.6 | 45410D316 | MCX PCB Mount Jack 1.6mm
MCX 50 ohm Edge Mount Jack, with gold plated body and contact, solder to board.
| Complete Electronics Part No. | 45410D316 |
|---|---|
| Manufacturers Part No. | 45-410-D3-1.6 |
| Male/Female: | Female |
| Type | PCB Mounting |
| Impedance | 50 Ohm |
| Working Frequency | Up To 6GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 6GHz
- Dielectric Withstand Voltage 500 Veff
- Insulation Resistance 1000 M-Ohm
Mechanical Specification
- Design Standard: IEC 61169-36 and CECC 22220
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Solder
- Mating Cycles: 500
- Weight: 0.82g
- Mating Force: 10N Max
- Uncoupling Force: 20N Max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP40
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Pack Size 1
