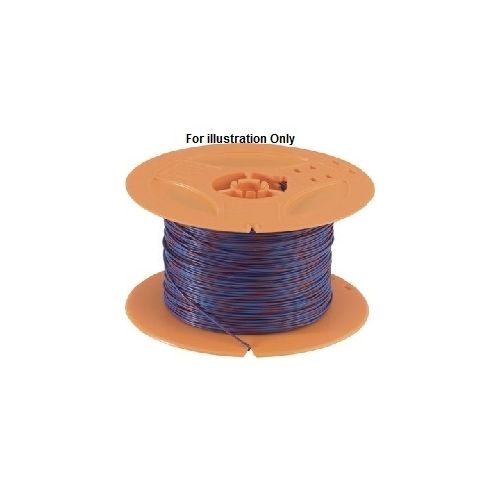

4502232S | LIY 2CHELIX 1X0,25 BUBK | LAPP Single Core Cable
4502232S, Single Core Cable, LiY with twin colour helix insulation, Conductor Cross Section: 0.25mm², Core Colour: Blue / Black
| Complete Electronics Part No. | 4502232S |
|---|---|
| Manufacturers Part No. | 4502232S |
| Control Cabinet Series | LiY Coloured Helix Insulation |
| Number of Conductors: | 1 |
| Conductor Cross Section: | 0.25mm² |
| Rated Voltage: | 50V |
| Core Colour: | Blue |
Description
Fine-wire strand made of bare copper wires (IEC 60228 class 5)
Polyvinylchloride (PVC)-based core insulation
For fixed and protected installation
Packaging type: Spool
HAR Certified - No
Helix, Two-Coloured Single Core Conductor
LiY with twin colour helix insulation
Conductor Cross Section: 0.25mm²
Core Colour: Blue / Black
Cable Outer Diameter: 1.5mm
Flame-retardant according to IEC 60332-1-2
Temperature range, Fixed Install: : -30°C to +70°C
Operating voltage < 50 VAC
Oil-resistant - No
Halogen Free - No
UV-resistant - No
PWIS-free - Yes
Temperature range, Fixed Install: : -30°C to +70°C
Operating voltage < 50 VAC
Oil-resistant - No
Halogen Free - No
UV-resistant - No
PWIS-free - Yes
Fine-wire strand made of bare copper wires (IEC 60228 class 5)
Polyvinylchloride (PVC)-based core insulation
For fixed and protected installation
Packaging type: Spool
HAR Certified - No
LAPP Part Number: 4502232S
Cable Length: 250M
