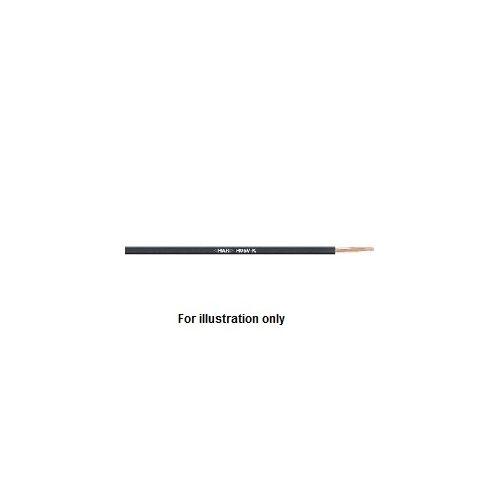

4510922 | H05V-K 1X0,75 DBUWH | LAPP Single Core Cable
4510922, Single Core Cable, H05V-K, HAR, power and control cable, Conductor Cross Section: 0.75mm², Core Colour: Dark Blue/White
| Complete Electronics Part No. | 4510922 |
|---|---|
| Manufacturers Part No. | 4510922 |
| Control Cabinet Series | H05V-K HAR |
| Number of Conductors: | 1 |
| Conductor Cross Section: | 0.75mm² |
| Rated Voltage: | 300 / 500 V |
| Core Colour: | Dark Blue |
Description
Fine-wire strand made of bare copper wires (IEC 60228 class 5)
Polyvinylchloride (PVC)-based core insulation
Harmonised European type H05V-K
For fixed and protected installation
Packaging type: Spool
HAR Certified
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Current rating according to VDE 0298-4
Temperature Range, Fixed Install: -40°C to +70°C
Flexible, Single Core Conductor
H05V-K, HAR For Fixed Installation
Conductor Cross Section: 0.75mm²
Core Colour: Dark Blue/White
Cable Outer Diameter: 2.2 - 2.7mm
Flame-retardant according to IEC 60332-1-2
Fire behaviour according to EU Directive 305/2011
Oil-resistant - No
Halogen Free - No
UV-resistant - No
Fire behaviour according to EU Directive 305/2011
Oil-resistant - No
Halogen Free - No
UV-resistant - No
Fine-wire strand made of bare copper wires (IEC 60228 class 5)
Polyvinylchloride (PVC)-based core insulation
Harmonised European type H05V-K
For fixed and protected installation
Packaging type: Spool
HAR Certified
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Current rating according to VDE 0298-4
Temperature Range, Fixed Install: -40°C to +70°C
LAPP Part Number: 4510922
Cable Length: 100M
