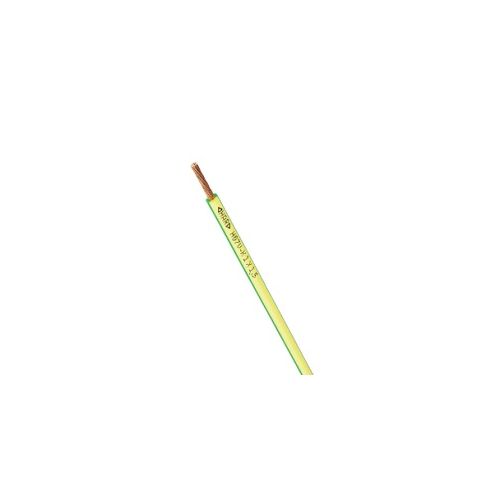

4520001 | H07V-K 1X1,5 GNYE | LAPP Single Core Cable
4520001, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 1.5mm², Cable Outer Diameter: 2.8 - 3.4mm, Green/Yellow
| Complete Electronics Part No. | 4520001 |
|---|---|
| Manufacturers Part No. | 4520001 |
| Control Cabinet Series | H07V-K HAR |
| Number of Conductors: | 1 |
| Conductor Cross Section: | 1.5mm² |
| Rated Voltage: | 450 / 750 V |
| Core Colour: | Green/Yellow |
Description
Fine-wire strand made of tinned-copper wires (IEC 60228 class 5)
Polyvinylchloride (PVC)-based core insulation
Harmonised European type H07V-K
Suitable for wiring inside control cabinets
HAR-certified
Nominal voltage: U0/U: 450/750 V AC rms according to IEC
Current rating according to VDE 0298-4
Temperature Range, Fixed Install: -40°C to +70°C
Harmonised, Flexible, Single Core Conductor
H07V-K, HAR, power and control cable
Conductor Cross Section: 1.5mm²
Cable Outer Diameter: 2.8 - 3.4mm
Conductor Colour: Green/Yellow
Flame-retardant according to IEC 60332-1-2
Fire behaviour according to EU Directive 305/2011
Oil-resistant - No
Halogen Free - No
UV-resistant - No
Fire behaviour according to EU Directive 305/2011
Oil-resistant - No
Halogen Free - No
UV-resistant - No
Fine-wire strand made of tinned-copper wires (IEC 60228 class 5)
Polyvinylchloride (PVC)-based core insulation
Harmonised European type H07V-K
Suitable for wiring inside control cabinets
HAR-certified
Nominal voltage: U0/U: 450/750 V AC rms according to IEC
Current rating according to VDE 0298-4
Temperature Range, Fixed Install: -40°C to +70°C
LAPP Part Number: 4520001
Cable Length: 100M
