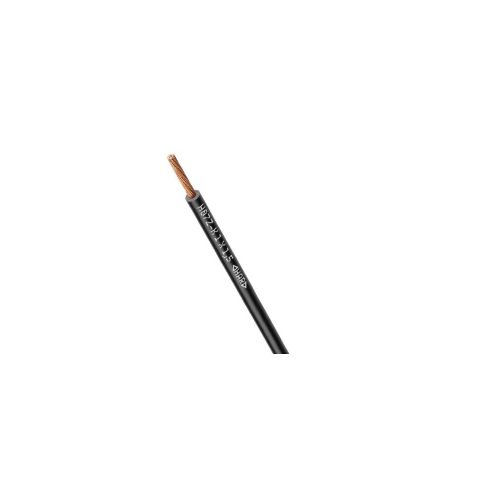

4520011 | H07V-K 1X1,5 BK | LAPP Single Core Cable
4520011, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 1.5mm², Cable Outer Diameter: 2.8 - 3.4mm
| Complete Electronics Part No. | 4520011 |
|---|---|
| Manufacturers Part No. | 4520011 |
| Control Cabinet Series | H07V-K HAR |
| Number of Conductors: | 1 |
| Conductor Size: | 1.5mm² |
| Rated Voltage: | 450 / 750 V |
| Core Colour: | Black |
Description
4520011, Single Core Cable
H07V-K, HAR, power and control cable
- Conductor Cross Section: 1.5mm²
- Cable Outer Diameter: 2.8 - 3.4mm
- Conductor Colour: Black
- For wiring of devices and control cabinets
- Flame-retardant according IEC 60332-1-2
- Fine-wired copper conductor of bare copper strands
- Core insulation: Based on PVC
- Cable type certification acc. EN 50525-2-31
- Nominal voltage: U0/U: 450/750 V
- Current rating: VDE 0298 Part 4 EN 50565-1/ VDE 0298-565-1
- Temperature range, Fixed Install: : -40°C to +80°C
- LAPP Part Number: 4520011
- Cable Length: 100M
