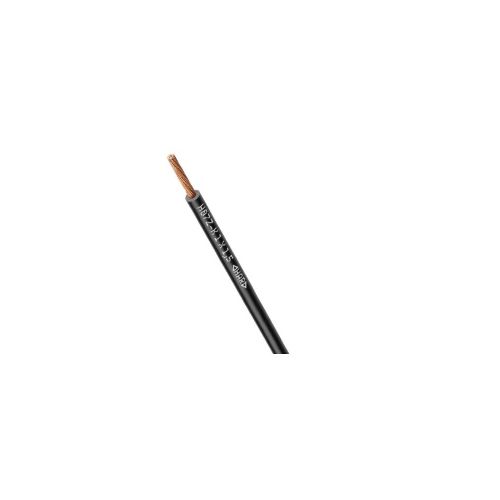

4520012E | H07V-K EMBOSS 1X2,5 BK | Single Core Cable
Harmonised, Flexible, Single Core Conductor, Conductor Cross Section: 2.5mm², Cable Outer Diameter: 3.4 - 4.1mm², Core Colour: Black
| Complete Electronics Part No. | 4520012E |
|---|---|
| Manufacturers Part No. | 4520012E |
| Control Cabinet Series | H07V-K EMBOSS |
| Number of Conductors: | 1 |
| Conductor Cross Section: | 2.5mm² |
| Rated Voltage: | 450 / 750 V |
| Core Colour: | Black |
Description
Fine-wire strand made of tinned-copper wires (IEC 60228 class 5)
Polyvinylchloride (PVC)-based core insulation
Harmonised European type H07V-K
Suitable for wiring inside control cabinets
Nominal voltage: U0/U: 450/750 V AC rms according to IEC
Current rating according to VDE 0298-4
Temperature Range, Fixed Install: -40°C to +70°C (IEC)
Harmonised, Flexible, Single Core Conductor
For fixed and protected installation
Conductor Cross Section: 2.5mm²
Cable Outer Diameter: 3.4 - 4.1mm²
Core Colour: Black
Flame-retardant according to IEC 60332-1-2
Fire behaviour according to EU Directive 305/2011
Oil-resistant - No
PWIS Free - No
Fire behaviour according to EU Directive 305/2011
Oil-resistant - No
PWIS Free - No
Fine-wire strand made of tinned-copper wires (IEC 60228 class 5)
Polyvinylchloride (PVC)-based core insulation
Harmonised European type H07V-K
Suitable for wiring inside control cabinets
Nominal voltage: U0/U: 450/750 V AC rms according to IEC
Current rating according to VDE 0298-4
Temperature Range, Fixed Install: -40°C to +70°C (IEC)
Cable Length: 2500M
Lapp Order Number: 4520012E
