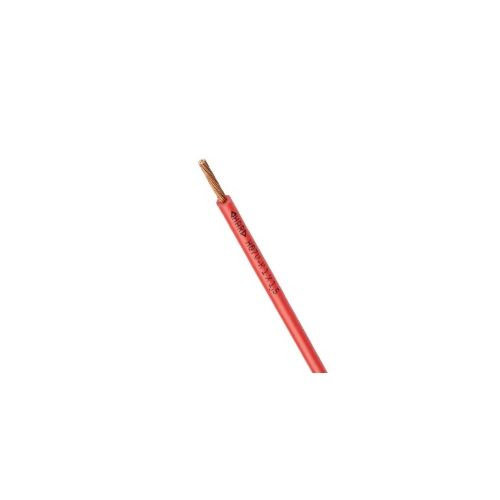

4520041S | H07V-K 1X1,5 RD | LAPP Single Core Cable
4520041S, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 1.5mm², Cable Outer Diameter: 2.8 - 3.4mm, Red
| Complete Electronics Part No. | 4520041S |
|---|---|
| Manufacturers Part No. | 4520041S |
Description
Fine-wire strand made of tinned-copper wires (IEC 60228 class 5)
Polyvinylchloride (PVC)-based core insulation
Harmonised European type H07V-K
Suitable for wiring inside control cabinets
HAR-certified
Nominal voltage: U0/U: 450/750 V AC rms according to IEC
Current rating according to VDE 0298-4
Temperature Range, Fixed Install: -40°C to +70°C
Harmonised, Flexible, Single Core Conductor
H07V-K, HAR, power and control cable
Conductor Cross Section: 1.5mm²
Cable Outer Diameter: 2.8 - 3.4mm
Conductor Colour: Red
Flame-retardant according to IEC 60332-1-2
Fire behaviour according to EU Directive 305/2011
Oil-resistant - No
Halogen Free - No
UV-resistant - No
Fire behaviour according to EU Directive 305/2011
Oil-resistant - No
Halogen Free - No
UV-resistant - No
Fine-wire strand made of tinned-copper wires (IEC 60228 class 5)
Polyvinylchloride (PVC)-based core insulation
Harmonised European type H07V-K
Suitable for wiring inside control cabinets
HAR-certified
Nominal voltage: U0/U: 450/750 V AC rms according to IEC
Current rating according to VDE 0298-4
Temperature Range, Fixed Install: -40°C to +70°C
LAPP Part Number: 4520041S
Cable Length: 150M
