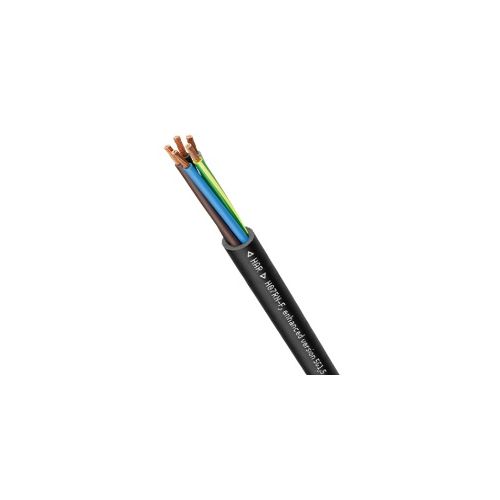

4533043 | H07RN-F, ENHANCED 3G35 | Harsh Conditions Cable
Submersible, Rubber power and control cable, Submersion to a depth of 100m, Conductors: 3, Conductor Diameter: 35.0mm², With GN/YE Protective conductor
| Complete Electronics Part No. | 4533043 |
|---|---|
| Manufacturers Part No. | 4533043 |
| Series: | H07RN F ENHANCED |
| Number of Conductors: | 3 |
| Conductor Cross Section: | 35mm² |
| Rated Voltage: | 450 / 750 V |
| Cable Type: | Submersible, Rubber power and control cable |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
| Cable Jacket: | Rubber compound, type EM2 |
| Cable Length: | 500 Metres |
Description
4533043 | H07RN-F, ENHANCED 3G35
Rubber Submersible Power and Control Cable
Number of Conductors: 3
Conductor Diameter: 35.0mm²
Cable Outer Diameter: 29.3 - 37.1mm
With GN-YE Protective Conductor
Conductor material: Bare Copper
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Rubber (E14)
Core identification: Colour-coded acc. to VDE 0293-308 / Black cores with white numbers
Core Colour: Black
Outer Sheath material: Rubber (EM2 acc. to EN 50363-2-1)
Outer Sheath colour: Black
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Rubber (E14)
Core identification: Colour-coded acc. to VDE 0293-308 / Black cores with white numbers
Core Colour: Black
Outer Sheath material: Rubber (EM2 acc. to EN 50363-2-1)
Outer Sheath colour: Black
Nominal voltage: U0/U: 450/750 V AC rms according to IEC
Test Voltage: 2.5kV
Temperature, fixed installation: -50°C to 90°C
Temperature, occasionally moved: -40°C to 90°C
Test Voltage: 2.5kV
Temperature, fixed installation: -50°C to 90°C
Temperature, occasionally moved: -40°C to 90°C
Chemical resistant - Yes
Flame retardant - Yes acc. to IEC 60332-1-2
Low smoke density acc. to IEC 61034-2
Halogen Free - Yes
Low-adhesion sheath surface -No
Oil-resistant - Yes (EN 50363-2-1)
Ozone resistant: - Yes acc. to EN 60811-403
Permanently immersible in water - Yes acc.to EN 50525-2-21
Permanent underwater use up to 500 m
PWIS-free - Yes
UV-resistant - Yes, (cables with a black sheath are suitable for permanent outdoor use)
Water resistant: -Yes
Salt water resistant - Yes
Flame retardant - Yes acc. to IEC 60332-1-2
Low smoke density acc. to IEC 61034-2
Halogen Free - Yes
Low-adhesion sheath surface -No
Oil-resistant - Yes (EN 50363-2-1)
Ozone resistant: - Yes acc. to EN 60811-403
Permanently immersible in water - Yes acc.to EN 50525-2-21
Permanent underwater use up to 500 m
PWIS-free - Yes
UV-resistant - Yes, (cables with a black sheath are suitable for permanent outdoor use)
Water resistant: -Yes
Salt water resistant - Yes
Typical areas of application are machine tools or submersible pumps
For fixed installation and occasional flexing
Withstands heavy mechanical stress
Can be used in dry, wet and especially in harsh and oily environments
Suitable for permanent underwater use
For fixed installation and occasional flexing
Withstands heavy mechanical stress
Can be used in dry, wet and especially in harsh and oily environments
Suitable for permanent underwater use
Flexible use at temperatures down to -40°C
Made according to harmonised European type H07RN-F with ◁HAR▷ testing mark or HAR-identification thread
◁HAR▷-style cables are widely accepted and can be used in Europe
Tested according to standards for use in water up to a water depth of 500m and a water temperature of 40°C
CE Marked, EAC Certified, ◁HAR▷ Certified
Made according to harmonised European type H07RN-F with ◁HAR▷ testing mark or HAR-identification thread
◁HAR▷-style cables are widely accepted and can be used in Europe
Tested according to standards for use in water up to a water depth of 500m and a water temperature of 40°C
CE Marked, EAC Certified, ◁HAR▷ Certified
Reel Length= 500M
Lapp part number: 4533043
