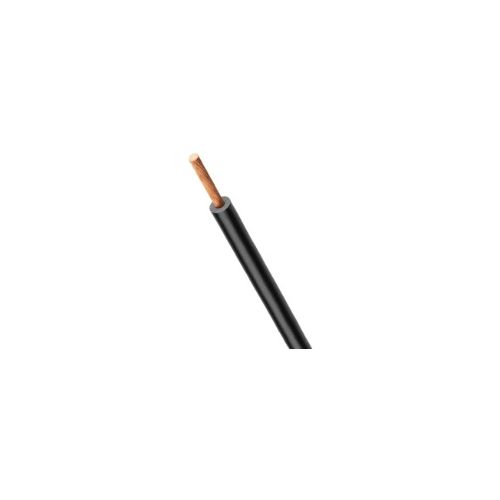

4560012S | LIFY 1 KV 1X1,5 BK | Single Core Cable
Single Core 1 KV Power and Control Cable, Conductor Cross Section 1.5mm², Number Of Cores: 1, Core Colour: Black, Cable Outer Diameter: 4.0mm
| Complete Electronics Part No. | 4560012S |
|---|---|
| Manufacturers Part No. | 4560012S |
| Number of Conductors: | 1 |
| Conductor Cross Section: | 1.5mm² |
| Rated Voltage: | 1000V |
| Core Colour: | Black |
| Special Application Series: | LiFY 1KV |
| Cable Length: | 50 Metres |
Description
4560012S | LIFY 1 KV 1X1,5 BK
Single Core 1 KV Power and Control Cable
Conductor Cross Section 1.5mm²
Number Of Cores: 1
Core Colour: Black
Cable Outer Diameter: 4.0mm
Conductor material: Bare Copper
Conductor design: IEC 60228 class 6: extra-fine wire
Nominal voltage: U0/U: 0,6/1 kV AC rms according to IEC
Core insulation: Based on PVC
Conductor design: IEC 60228 class 6: extra-fine wire
Nominal voltage: U0/U: 0,6/1 kV AC rms according to IEC
Core insulation: Based on PVC
Oil-resistant - No
Chemical resistant - No
UV-resistant - No
Ozone Resistant - No
Halogen Free - No
Flame retardant - No
PWIS-free - Yes, acc. to VDMA 24364-B2-L
Chemical resistant - No
UV-resistant - No
Ozone Resistant - No
Halogen Free - No
Flame retardant - No
PWIS-free - Yes, acc. to VDMA 24364-B2-L
Temperature, fixed installation: -30°C to 70°C
Temperature, occasionally moved: -15°C to 70°C
Temperature, occasionally moved: -15°C to 70°C
Flexible use Temperature Range: -15°C to +70°C
Extra-finely stranded IEC conductor, (diameter of each wire is 0.07 mm)
Very soft PVC insulation
For use in and on mobile equipment
Crush-resistant and non-ageing
Ideal for use with Multimeters etc
The outer diameter for all cross-sections is 4 mm
CE Marked, EAC Certified
Very soft PVC insulation
For use in and on mobile equipment
Crush-resistant and non-ageing
Ideal for use with Multimeters etc
The outer diameter for all cross-sections is 4 mm
CE Marked, EAC Certified
Cable Length: 50M
Lapp part number: 4560012S
