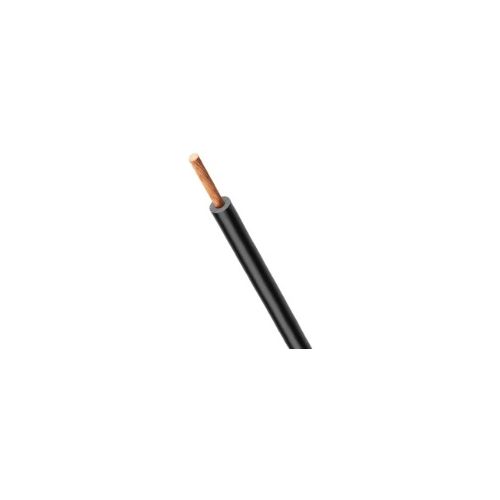

4560013S | LIFY 1X0,75 BK | Single Core Cable
Single Core Power and Control Cable, Conductor Cross Section 0.75mm², Number Of Cores: 1, Core Colour: Black, Cable Outer Diameter: 2.5mm
| Complete Electronics Part No. | 4560013S |
|---|---|
| Manufacturers Part No. | 4560013S |
| Number of Conductors: | 1 |
| Conductor Cross Section: | 0.75mm² |
| Rated Voltage: | 300 / 500 V |
| Core Colour: | Black |
| Special Application Series: | LiFY |
| Cable Length: | 100 Metres |
Description
4560013S | LIFY 1X0.75 BK
Single Core Power and Control Cable
Conductor Cross Section 0.75mm²
Number Of Cores: 1
Core Colour: Black
Cable Outer Diameter: 2.5mm
Conductor material: Bare Copper
Conductor design: IEC 60228 class 6: extra-fine wire
Nominal voltage: U0/U: 450/750 V AC rms according to IEC
Core insulation: Based on PVC
Conductor design: IEC 60228 class 6: extra-fine wire
Nominal voltage: U0/U: 450/750 V AC rms according to IEC
Core insulation: Based on PVC
Extra-finely stranded IEC conductor, (diameter of each wire is 0.07 mm)
Very soft PVC insulation
For use in and on mobile equipment
Crush-resistant and non-ageing
Ideal for use with Multimeters etc
CE Marked, EAC Certified
Very soft PVC insulation
For use in and on mobile equipment
Crush-resistant and non-ageing
Ideal for use with Multimeters etc
CE Marked, EAC Certified
Oil-resistant - No
Chemical resistant - No
UV-resistant - No
Ozone Resistant - No
Halogen Free - No
Flame retardant - No
PWIS-free - Yes, acc. to VDMA 24364-B2-L
Chemical resistant - No
UV-resistant - No
Ozone Resistant - No
Halogen Free - No
Flame retardant - No
PWIS-free - Yes, acc. to VDMA 24364-B2-L
Temperature, fixed installation: -30°C to 70°C
Temperature, occasionally moved: -15°C to 70°C
Temperature, occasionally moved: -15°C to 70°C
Flexible use Temperature Range: -15°C to +70°C
Cable Length: 100M
Lapp part number: 4560013S
