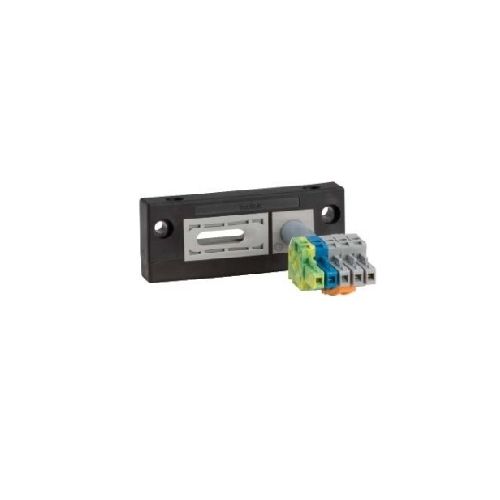

46150 | KEL-FL K black | icotek Cable Entry Frame
Simple, fast and flexible cable routing, For Flat and Circular Cables ,Number of Grommets: 1 x FT-1 + 1 x FT2, Flat Rubber Gasket included
| Complete Electronics Part No. | 46150 |
|---|---|
| Manufacturers Part No. | 46150 |
| Number of Cables: | max 2 |
| ATEX Approval: | Not ATEX Approved |
| Series: | KEL FL |
Description
Split cable entry frames
For Routing of flat and round cables
Length: 147mm
Width: 39mm
Height: 17mm
Cut out size: 112 x 24mm
Diameter of Screw Holes: 5.8mm
Width: 39mm
Height: 17mm
Cut out size: 112 x 24mm
Diameter of Screw Holes: 5.8mm
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C
Halogen-free and silicone-free
UV resistant
Vibration proof
Mounting Screws: Mild steel, galvanically zinc plated
Suitable for grommets: 1 x FT-4 and 1 x FT-2
UV resistant
Vibration proof
Mounting Screws: Mild steel, galvanically zinc plated
Suitable for grommets: 1 x FT-4 and 1 x FT-2
Packing Unit: 10
Icotek Order Number: 46150
EAN: 4251269311659
