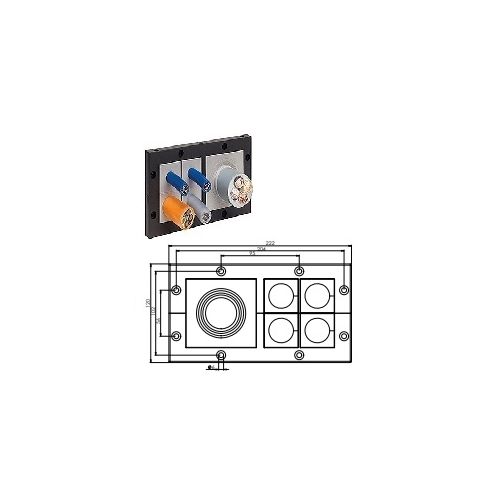

47220 | KEL183/5 black | Entry Frame
Cable Entry Frame, Screw type mounting, Grommets: 1 x KTMB 183 + 4 x KT Large, Frame Dimensions, Length 222mm, Width 120mm, Height: 17mm
| Complete Electronics Part No. | 47220 |
|---|---|
| Manufacturers Part No. | 47220 |
| Number of Cables: | max 5 |
| ATEX Approval: | Not ATEX Approved |
| Series: | KEL 183 |
Description
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54
Temperature Rating: - 40°C to +140°C
Halogen-free and silicone-free
UV Resistant, Vibration Proof
Packing Unit: 1
Icotek part no. 47220
EAN: 4251269311857
47220 | KEL183/5 black | Entry Frame
Cable Entry Frame
Suitable for Grommets: 1 x KTMB 183 + 4 x KT Large
Length: 222mm
Width: 120mm
Height: 17mm
Cut out size: 180 x 80mm
Max No. cables: 5
Max Cable Diameter 75mm
8 Screw holes (6mm diameter)
Mounting Screws: Mild steel, galvanically zinc plated
Length: 222mm
Width: 120mm
Height: 17mm
Cut out size: 180 x 80mm
Max No. cables: 5
Max Cable Diameter 75mm
8 Screw holes (6mm diameter)
Mounting Screws: Mild steel, galvanically zinc plated
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54
Temperature Rating: - 40°C to +140°C
Halogen-free and silicone-free
UV Resistant, Vibration Proof
Packing Unit: 1
Icotek part no. 47220
EAN: 4251269311857
