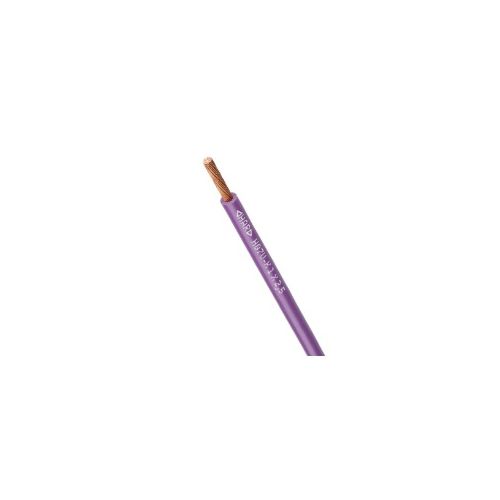

4726076 | H07Z-K 90°C 1x16 VT | Single Core Cable
Harmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 16mm², Cable Outer Diameter: 6.7 - 8.4mm
| Complete Electronics Part No. | 4726076 |
|---|---|
| Manufacturers Part No. | 4726076 |
| Control Cabinet Series | H07Z-K 90°C |
| Number of Conductors: | 1 |
| Conductor Cross Section: | 16.0mm² |
| Rated Voltage: | 450 / 750 V |
| Core Colour: | Violet |
Description
Harmonised Halogen-Free Cable
For Wiring in Control Cabinets
Conductor Cross Section: 16mm²
Cable Outer Diameter: 6.7 - 8.4mm
Core Colour: Violet
Flame-retardant according IEC 60332-1-2
Low smokes/low smoke density according to IEC 61034
HAR cable type certification acc. EN 50525-3-41
Core insulation: Halogen-free
Nominal voltage: U0/U: 450/750 V
Temperature Range Fixed Install: -40°C to +90°C
Cable Length: 1500M
Lapp Part Number: 4726076
