48206.200 | KEL-ER B1 black V2A | icotek Cable Entry Frame

Split Cable Entry System, For Routing Cables with Connectors, Grommets: 1 KT Small, Inc flat Rubber Gasket, Length 73mm, Width 58mm, Height 17mm

More Information
Complete Electronics Part No. 48206.200
Manufacturers Part No. 48206.200
Number of Cables: max 1
ATEX Approval: Not ATEX Approved
Series: KEL ER
Description

Split Cable Entry System

For Routing Cables with Connectors

Number of Grommets: 1 KT Small
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C

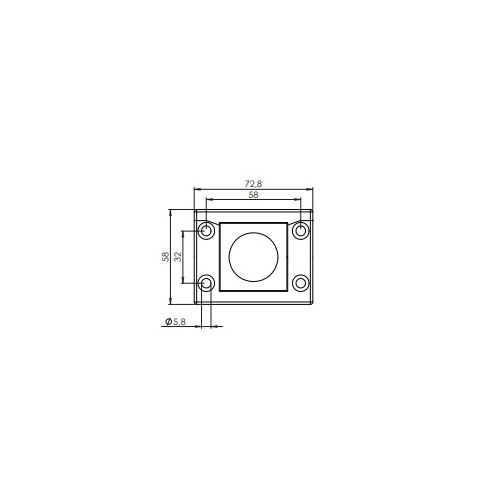

Length: 73mm
Width: 58mm
Height: 17mm
Cut out size: 46 x 46mm
Max No. cables: 1
Max Cable Diameter 35mm

Halogen-free and silicone-free
UV Resistant, Vibration Proof
Mounting Screws: Stainless Steel (V2A)

Packing Unit: 10
Icotek Order Number: 48206.200
EAN: 4251269312021
