48244 | KEL-ER 24/4 black | icotek Cable Entry Frame
Split Cable Entry System, For Routing Cables with Connectors ,Number of Grommets: 2 Small + 2 Large, Length 147mm, Width 58mm, Height 17mm
| Complete Electronics Part No. | 48244 |
|---|---|
| Manufacturers Part No. | 48244 |
| Number of Cables: | max 4 |
| ATEX Approval: | Not ATEX Approved |
| Series: | KEL ER |
Description

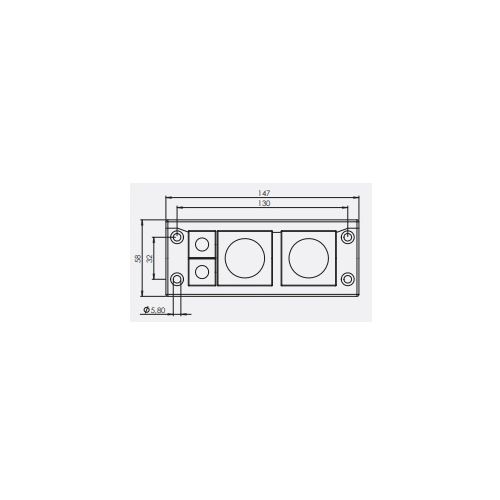

Length: 147mm
Width: 58mm
Height: 17mm
Cut out size: 112 x 36mm
Max No. cables: 4
Max Cable Diameter 35mm
Halogen-free and silicone-free
UV Resistant, Vibration Proof
Mounting Screws: Mild steel, galvanically zinc plated
Packing Unit: 10
Icotek Order Number: 48244
EAN: 4251269312106
Split Cable Entry System
For Routing Cables with Connectors
Number of Grommets: 4 KT Small + 2 KT Large
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C
Length: 147mm
Width: 58mm
Height: 17mm
Cut out size: 112 x 36mm
Max No. cables: 4
Max Cable Diameter 35mm
Halogen-free and silicone-free
UV Resistant, Vibration Proof
Mounting Screws: Mild steel, galvanically zinc plated
Packing Unit: 10
Icotek Order Number: 48244
EAN: 4251269312106
