48259 | KEL-ER -E 4 black | icotek Cable Entry Frame
Split Cable Entry System, For Routing Cables with Connectors, Grommets: 4 KT Small, Inc flat Rubber Gasket, Length 120mm, Width 39mm, Height 17mm
| Complete Electronics Part No. | 48259 |
|---|---|
| Manufacturers Part No. | 48259 |
| Number of Cables: | max 3 |
| ATEX Approval: | Not ATEX Approved |
| Series: | KEL ER |
Description

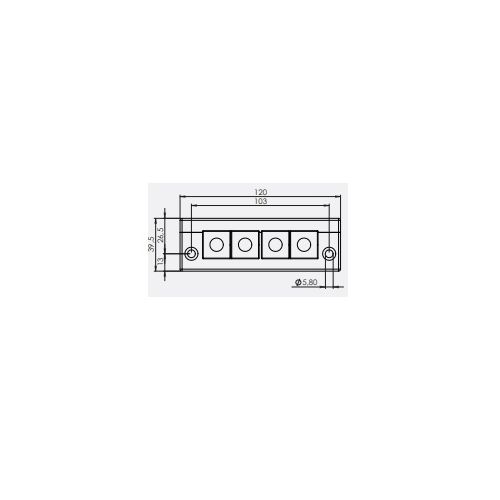

Length: 120mm
Width: 39mm
Height: 17mm
Cut out size: 86 x 24mm
Max No. cables: 4
Max Cable Diameter 16mm
Halogen-free and silicone-free
UV Resistant, Vibration Proof
Mounting Screws: Stainless Steel (V2A)
Packing Unit: 10
Icotek Order Number: 48259
EAN: 4251269312199
Split Cable Entry System
For Routing Cables with Connectors
Number of Grommets: 4 KT Small
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C
Length: 120mm
Width: 39mm
Height: 17mm
Cut out size: 86 x 24mm
Max No. cables: 4
Max Cable Diameter 16mm
Halogen-free and silicone-free
UV Resistant, Vibration Proof
Mounting Screws: Stainless Steel (V2A)
Packing Unit: 10
Icotek Order Number: 48259
EAN: 4251269312199
