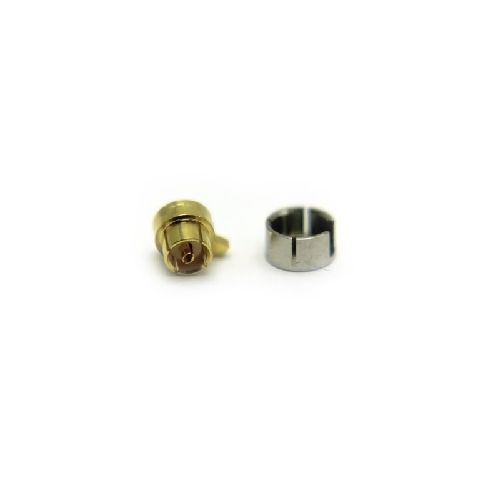

49-108-B3-KA | 49108B3KA | U.FL R/A Solder/Solder Plug
U.FL Right Angle Solder /Solder Plug for use with Alpha Wire 9444
| Complete Electronics Part No. | 49108B3KA |
|---|---|
| Manufacturers Part No. | 49-108-B3-KA |
| Male/Female: | Plug |
| Type | Panel / Bulkhead Mount |
| Impedance | 50 Ohm |
| Working Frequency | Up To 6GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency: Up to 6GHz
- Dielectric W/V: 200 Veff
- Insulation: 500 M Ohm
Mechanical Specification
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Solder
- Contact Retention: 0.15 N min
- Cable Retention: TBC N min
- Mating Cycles: 30
- Weight: 0.11g
- Operating Temperature: -55 to +155°C
- IP Rating (Mated):
Materials
- Centre Contact: Gold Plated Beryllium Copper
- Outer Contact: Gold Plated Beryllium Copper
- Insulator: PTFE
