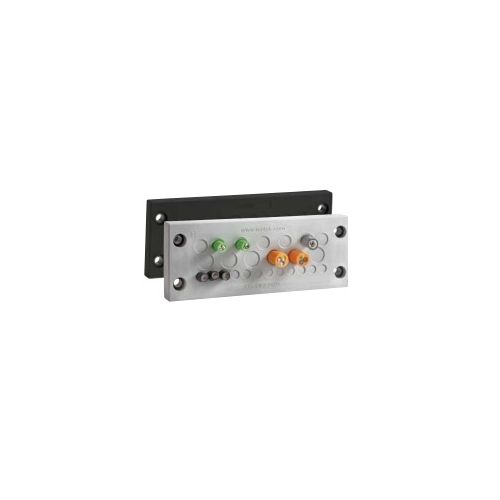

49301 | KEL-DPZ-E 112/ 7 Grey ATEX | Cable Entry Plate
KEL DPZ Cable entry plates, ATEX Approved to route and seal cables, Cut Out: 18 x 112mm
| Complete Electronics Part No. | 49301 |
|---|---|
| Manufacturers Part No. | 49301 |
| Number of Cables: | max 7 |
| Core Colour: | Grey |
| ATEX Approval: | Not ATEX Approved |
| Enclosure Shape: | Rectangular |
Description
KEL DPZ Cable entry plates
ATEX Approved to route and seal cables
- Number of Cables: max 7x7.5-12mm
- Cut Out: 18 x 112mm
- Colour: Grey (similar to RAL 7035)
- Frame: Polyamide (PA)
- Sealing plate: Elastomer
- UL94-V0, self-extinguishing
- IP65/IP66 (certifi ed acc. to EN 60529)
- Temperature: -30°C to +70°C (Static)
- NEMA type 12 (acc. to UL 50E)
- Halogen Free and Silicone Free
- High cable density
- Pack Unit 10
- icotek part number: 49301
