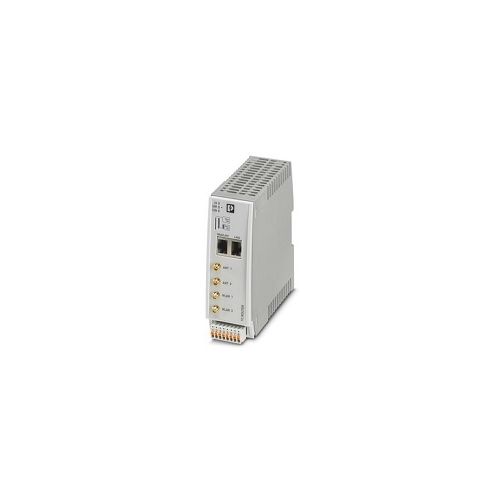

4G LTE WLAN router | 1234354

4G LTE router, EU device, 3G (UMTS/HSPA) and 2G (GPRS/EDGE) fallback, 2-port switch, firewall, NAT, IPsec and OpenVPN support, 2 x DI, 1 x DO, RS-232/RS-485
More Information
Complete Electronics Part No. 1234354
Manufacturers Part No. 1234354
Ethernet Product Type: Router
Total 10/100 (RJ45) Ports: 2
IP Rating: IP20
Description

TC ROUTER 4202T-4G EU WLAN

2 port switch

  • 2 Digital Inputs (DI)
  • 1 Digital Outputs (DO)
  • RS232 / RS485
  • Supply Voltage Range: 10 V DC...30 V DC (Via pluggable Push-in terminal block)
  • Push in spring connection
  • Typical Current Consumption: < 180 mA (24 V DC), < 500 mA (10 V DC),
  • Web Based Management, SNMPv1/v2/v3
  • Micro SDHC card for storage
  • Voltage input signal: 10 V DC ... 30 V DC
  • Input Swithing level "0" <8 V DC
  • Input Switching level "1" 10 V DC ... 30 V DC
  • Output voltage signal: 10 V DC ... 30 V DC (depending on the operating voltage)
  • Current output signal: ≤ 50 mA (Not short-circuit proof)
  • Serial transmission speed: 10/100 Mbps, auto negotiation
  • WLAN in accordance with IEEE 802.11 a/b/g/n
  • GSM / GPRS / EDGE / UMTS / HSPA / LTE (FDD)
  • Degree of protection: IP20
  • Operating Temperature: -40°C ... 70°C
  • Width: 45mm
  • Height: 130mm
  • Depth: 130mm
  • Mounting Type: DIN Rail
  • Housing material: Grey Polycarbonate
  • Weight per Piece (excluding packing): 346 g
  • Part Number 1234354
  • Customs tariff number: 85176200
  • Country of origin: DE
