4GMOD118-7 | 4GMOD1187 | Embedded Antenna

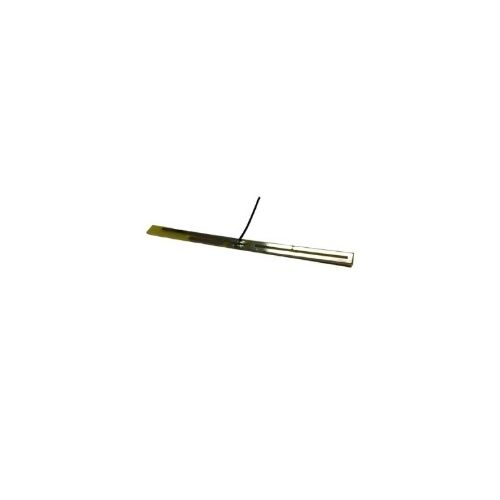

Bloomice 4GMOD118-7 2G/3G/4G-LTE, 118mm x 7mm FR4 PCB Antenna, Excellent VSWR efficiency at tuned points from 798MHz to 2700MHz
| Complete Electronics Part No. | 4GMOD1187 |
|---|---|
| Manufacturers Part No. | 4GMOD118-7 |
| Antenna Type: | Embedded |
Description
Bloomice 4GMOD118-7 2G/3G/4G-LTE
118mm x 7mm FR4 PCB Antenna
Excellent VSWR efficiency at tuned points from 798MHz to 2700MHz
Choice of cable to suit any customer specific application
MICRO LOW LOSS 0.81, 1.13 or 1.37 through to RG178 or RG174 cable
Wide range of connectors from W.FL through to TNC
Secured into position with a self adhesive fixing strip
Gain 0dBi to 2100MHz / 2.14dBi @ 2500MHz-2700MHz
Operational Temperature -40°C to +85°C
