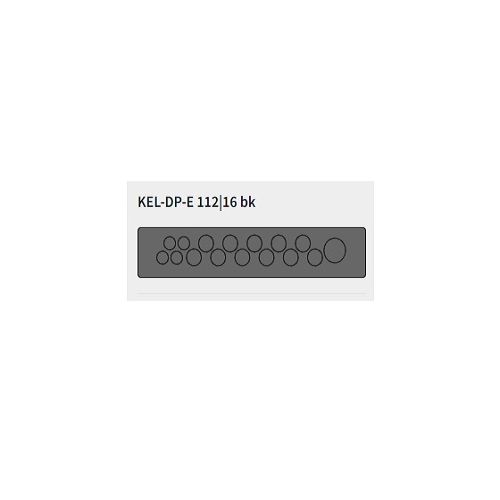

50576 | KEL-DP-E 112/16 Black | Cable Entry Plate
KEL-DP Cable Entry Plate, For routing cables without connectors, Cut out Dimensions: 112 x 18mm, max cable size 12.1mm, max number of cables 16
| Complete Electronics Part No. | 50576 |
|---|---|
| Manufacturers Part No. | 50576 |
| Number of Cables: | max 16 |
| Core Colour: | Black |
| ATEX Approval: | Not ATEX Approved |
| Enclosure Shape: | Rectangular |
Description
Max no. of cables: 16
Max Cable Diameter 12.1mm
Clamping range:- 4 x 1 to 6.5mm + 11 x 1 to 8.3mm + 1 x 1 to 12.1
Material: Elastomer
Flame Class: UL94-V0, self-extinguishing
Temperature Rating: -30°C to +100°C
Silicone free, Halogen free
Ingress Protection: IP54/IP64
ST-B Plugs can be used for sealing pierced membranes if cables have been removed
Minimum wall thickness 1.5mm
Maximum wall thickness 2.5mm
Packing Unit: 10
Icotek Part Number: 50576
EAN: 4251269314964
KEL-DP-E 112/16 bk Cable Entry Plate
For routing cables without connectors
Colour: Black
Length: 128mm
Width: 25mm
Height: 12mm
Cut out size: 112 x 18mm
Mounting height:5mm
Mounting: Snap in
Length: 128mm
Width: 25mm
Height: 12mm
Cut out size: 112 x 18mm
Mounting height:5mm
Mounting: Snap in
Max no. of cables: 16
Max Cable Diameter 12.1mm
Clamping range:- 4 x 1 to 6.5mm + 11 x 1 to 8.3mm + 1 x 1 to 12.1
Material: Elastomer
Flame Class: UL94-V0, self-extinguishing
Temperature Rating: -30°C to +100°C
Silicone free, Halogen free
Ingress Protection: IP54/IP64
ST-B Plugs can be used for sealing pierced membranes if cables have been removed
Minimum wall thickness 1.5mm
Maximum wall thickness 2.5mm
Packing Unit: 10
Icotek Part Number: 50576
EAN: 4251269314964
